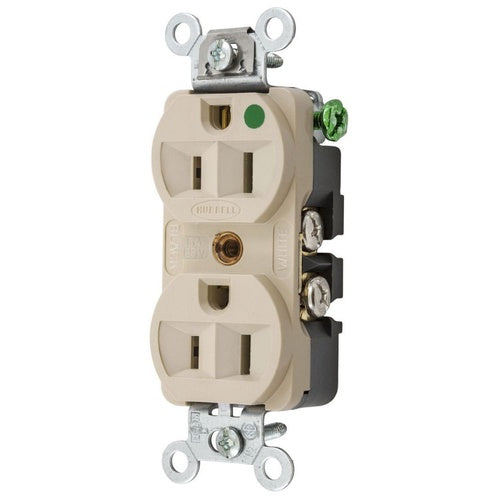

Hubbell HBL8200HI Duplex Commercial/Hospital Grade Receptacle Nema5-15R

Overview

Hubbell HBL8200HI Duplex Commercial/Hospital Grade Receptacle Nema5-15R

Product Specifications

• UPC: 78358501583
• Number Of Wires: 3
• Ground Type: Grounding
• Material: PBT (Face/Base)
• Color: Ivory
• Wiring: Back, Side
• Grade: Hospital
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL8200HI
• Brand Name: HBL[R]
• Type: Finder Groove Face Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 Volt
• Current Rating: 15 Amp
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, COMPACT HOSPITAL GRADE, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5- 15R, IVORY, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Finder Groove Face Duplex Type; Pbt (Face/Base) Material; Ivory Color; 5-15R Configuration; 3 Wire(S); Hospital Grade; UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; HBL[R] Brand; Wire Size 14 to 10 AWG; Contact Material Brass; Temperature Rating -40 to 75 Deg C
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585015835
• SKU Name: hubw hbl8200hi

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
