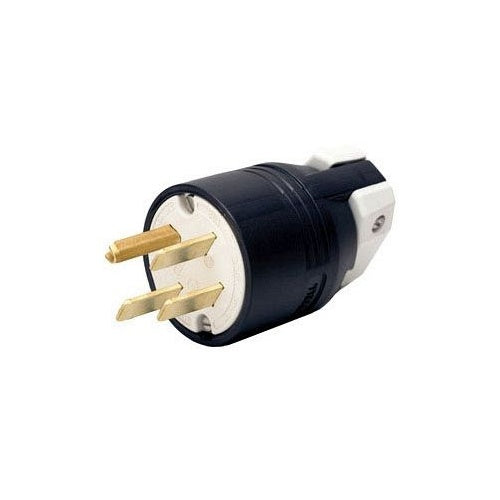

Hubbell HBL8431C Plug, 3P4W, 30A 3Ph 250V,15-30P, Black,

Overview

Hubbell HBL8431C Plug, 3P4W, 30A 3Ph 250V,15-30P, Black,

Product Specifications

• UPC: 78358501540
• Ground Type: Grounding
• Material: Nylon
• Color: Black
• Cord Size: 0.625 to 1.31 Inch
• Approval: UL 498, Federal Specification UL, CSA C22.2
• Additional Information: Power Rating 3 HP; Wire Size 12 to 4 AWG Copper; Enclosure Rating IP20; Material Brass (Contact), 0.062 Inch Pre-Plated Steel (Mounting Plate); Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL8431C
• Brand Name: Wiring Device-Kellems
• Type: Straight
• Configuration: 15-30P
• Voltage Rating: 250 Volt AC 3-Phase
• Current Rating: 30 Amp
• Number Of Poles: 3
• Number Of Wires: 4
• Catalog Description: STRAIGHT BLADE DEVICES, PLUG INDUSTRIAL GRADE, 3-POLE 4-WIRE GROUNDING, 30A 3 PHASE 250V AC, 15-30P, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Straight Type; Nylon Material; Black Color; 15-30P Configuration; 4 Wire(S); UL 498, Federal Specification UL, CSA C22.2 Approval; 250 Volt AC 3-Phase Voltage Rating; 30 Amp Current Rating; Grounding; 3 Pole(S); 0.625 to 1.31 Inch Cord Size; Power Rating 3 HP; Wire Size 12 to 4 AWG Copper; Enclosure Rating IP20; Material Brass (Contact), 0.062 Inch Pre-Plated Steel (Mounting Plate); Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Power Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585015408
• SKU Name: hubw hbl8431c
