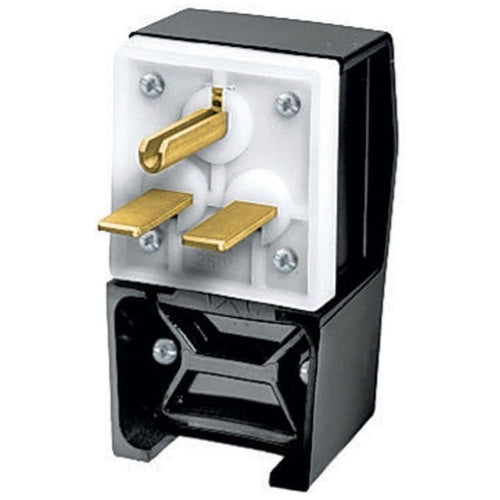

Hubbell HBL9331 Plug, Angled, 2P3W, 30A 250V, 6-30P, Black,

Overview

Hubbell HBL9331 Plug, Angled, 2P3W, 30A 250V, 6-30P, Black,

Product Specifications

• UPC: 78358501524
• Ground Type: Grounding
• Material: Nylon
• Color: Black
• Cord Size: 0.625 to 1.187 Inch
• Approval: UL 498, Federal Specification UL, CSA C22.2
• Additional Information: Power Rating 2 HP; Blade Material 0.06 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C
• Catalog Number: HBL9331
• Brand Name: Wiring Device-Kellems
• Type: Straight
• Configuration: 6-30P
• Voltage Rating: 250 Volt
• Current Rating: 30 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, MALE PLUG, NYLON, 4-POSITION, HEAVY DUTY, INDUSTRIAL/COMMERCIAL GRADE, ANGLED, 2-POLE 3-WIRE GROUNDING, 30A 250V, 6-30P, BLACK, SINGLE PACK.
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Straight Type; Nylon Material; Black Color; 6-30P Configuration; 3 Wire(S); UL 498, Federal Specification UL, CSA C22.2 Approval; 250 Volt Voltage Rating; 30 Amp Current Rating; Grounding; 2 Pole(S); 0.625 to 1.187 Inch Cord Size; Power Rating 2 HP; Blade Material 0.06 Inch Brass; Enclosure Rating IP20; Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Power Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585015248
• SKU Name: hubw hbl9331

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
