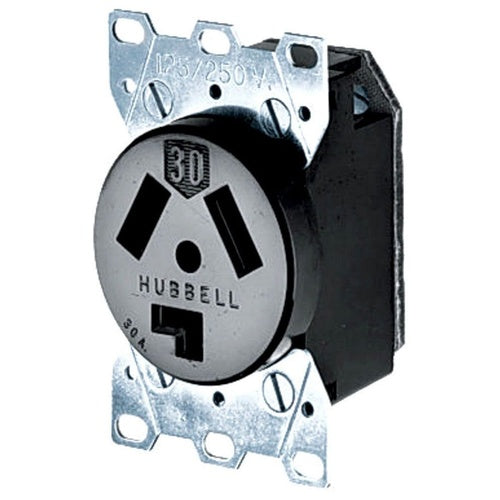

Hubbell HBL9350 Receptacle, 3P3W, 30A 125/250V, 10-30R, Black,

Overview

Hubbell HBL9350 Receptacle, 3P3W, 30A 125/250V, 10-30R, Black,

Product Specifications

• UPC: 78358501525
• Color: Black
• Material: Phenolic
• Face Outer Diameter: 2.09 Inch
• Mounting Depth: 1.31 Inch
• Mounting: Surface
• Approval: UL
• Additional Information: Blade Material 0.075 Inch Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL9350
• Type: Single
• Configuration: 10-30R
• Voltage Rating: 125/250 V
• Current Rating: 30 Ampere
• Number Of Poles: 3
• Number Of Wires: 3
• Ground Type: Non-Grounding
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, RTP, INDUSTRIAL GRADE, 3-POLE 3-WIRE NON-GROUNDING, 30A 125/250V, 10-30R, BLACK, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Phenolic Material; Black Color; 10-30R Configuration; 3 Wire(S); UL Approval; 125/250 V Voltage Rating; Surface Mounting; 30 Ampere Current Rating; Non-Grounding; 3 Pole(S); 1.31 Inch Mounting Depth; 2.09 Inch Face Outer Diameter; Blade Material 0.075 Inch Brass; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Power Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585015255
• SKU Name: hubw hbl9350
