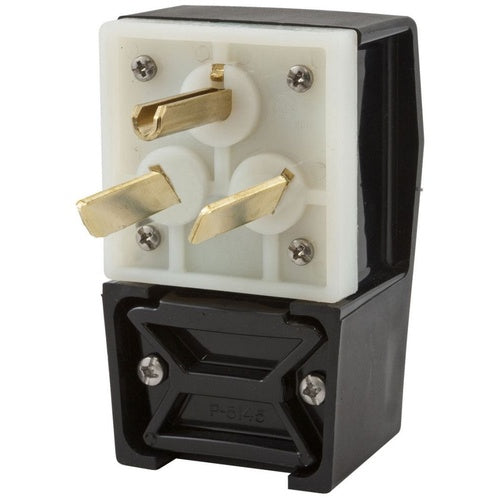

Hubbell HBL9379 Plug, Angled, 2P3W, 50A 277V, 7-50P, Black,

Overview

Hubbell HBL9379 Plug, Angled, 2P3W, 50A 277V, 7-50P, Black,

Product Specifications

• UPC: 78358501554
• Ground Type: Grounding
• Material: Nylon
• Color: Black/White
• Cord Size: 0.625 to 1.187 Inch
• Approval: UL 498, FSUL, CSA C22.2
• Additional Information: Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: HBL9379
• Brand Name: Insulgrip[R]
• Type: Angled
• Configuration: 7-50P
• Voltage Rating: 277 VAC
• Current Rating: 50 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE MALE PLUG, 4-POSITION, HEAVY DUTY, INDUSTRIAL/COMMERCIAL GRADE, ANGLED, 2-POLE 3-WIRE GROUNDING, 50A 277V AC, 7-50P
• Category: Plugs,Conn,Inlets,Outlets,Lampholdr
• Full Technical Description: Angled Type; Nylon Material; Black/White Color; 7-50P Configuration; 3 Wire(S); UL 498, FSUL, CSA C22.2 Approval; 277 VAC Voltage Rating; 50 Ampere Current Rating; Grounding; 2 Pole(S); 0.625 to 1.187 Inch Cord Size; Enclosure IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Power Plug
• Unspsc: 39121402
• UPC 12 Digit: 783585015545
• SKU Name: hubw hbl9379
