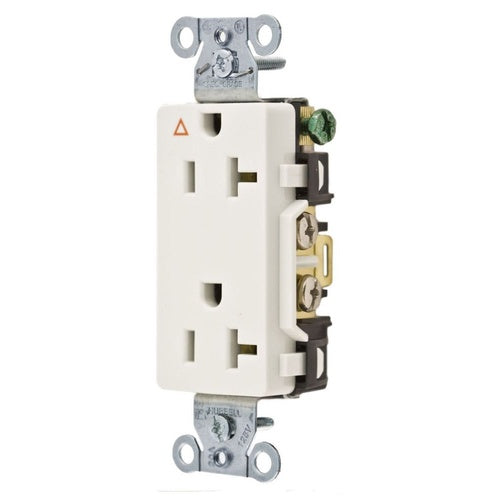

Hubbell IG20DRWHI Commercial 20A 125V Duplex Receptacle

Overview

Hubbell IG20DRWHI Commercial 20A 125V Duplex Receptacle

Product Specifications

• UPC: 78358514787
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Isolated Ground
• Material: Nylon (Face/Base)
• Color: White
• Wiring: Back, Side
• Grade: Commercial, Specification
• Approval: UL 498, CSA C22.2
• Additional Information: Power Rating 1 HP; Material Brass (Contact), Galvanized Steel (Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2; Applicable Standard Federal Specification WC-596, NEMA WD-6
• Catalog Number: IG20DRWHI
• Brand Name: Wiring Device-Kellems
• Model: IG20DR
• Type: Smooth Face Decorator Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-20R
• Voltage Rating: 125 Volt
• Current Rating: 20 Amp
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DECORATOR DUPLEX, COMMERCIAL GRADE, CORROSION RESISTANT, SMOOTH FACE, 20A 125V, 2- POLE 3-WIRE GROUNDING, 5-20R, BACK AND SIDE WIRED, WHITE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Smooth Face Decorator Duplex Type; Nylon (Face/Base) Material; White Color; 5-20R Configuration; 3 Wire(S); Commercial, Specification Grade; UL 498, CSA C22.2 Approval; 125 Volt Voltage Rating; 20 Amp Current Rating; Isolated Ground; 2 Pole(S); Impact Resistant; Back, Side Wiring; SPIKESHIELD[R] Brand; Power Rating 1 HP; Material Brass (Contact), Galvanized Steel (Strap); Temperature Rating -40 to 75 Deg C; Flammability Rating UL 94 V-2; Applicable Standard Federal Specification WC-596, NEMA Wd-6; IG20DR Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585147871
• SKU Name: hubw ig20drwhi

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
