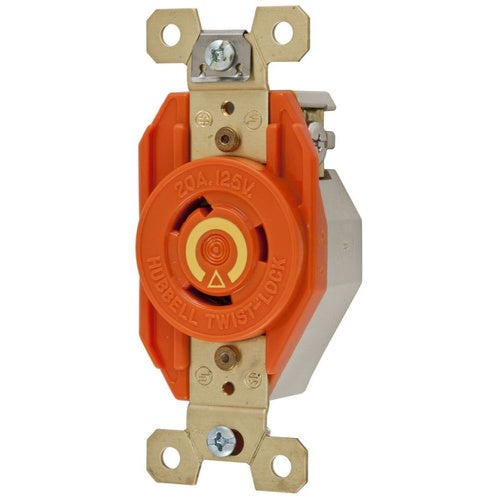

Hubbell IG2310 Locking Receptacle, Ig, 20A 125V, L5-20R, Orange

Overview

Hubbell IG2310 Locking Receptacle, Ig, 20A 125V, L5-20R, Orange

Product Specifications

• UPC: 78358587220
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Face Outer Diameter: 1.562 Inch
• Material: Nylon (Face), RTP (Base)
• Color: Orange
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2, Fed.Spec W-C-596
• Additional Information: Wire Size 16 to 8 AWG; Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Application Industrial
• Catalog Number: IG2310
• Brand Name: Twist-Lock[R], SpikeShield[R]
• Type: Single
• Constructional Feature: Abuse/Impact/Corrosion/Moisture Resistant
• Configuration: L5-20R
• Voltage Rating: 125 Volt AC 1-Phase
• Current Rating: 20 Amp
• Number Of Poles: 2
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, ISOLATED GROUND INDUSTRIAL, SINGLE FLUSH RECEPTACLE, 20A 125V, 2-POLE 3-WIRE GROUNDING, NEMA L5-20R, SCREW TERMINAL, ORANGE NYLON FACE.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Nylon (Face), Rtp (Base) Material; Orange Color; L5-20R Configuration; 3 Wire(S); UL 94/498, CSA C22.2, FED.SPEC W-C-596 Approval; 125 Volt AC 1-Phase Voltage Rating; Flush Mount Mounting; 20 Amp Current Rating; Isolated Grounding; 2 Pole(S); Abuse/Impact/Corrosion/Moisture Resistant; Back, Side Wiring; 1.562 Inch Face Outer Diameter; Twist-Lock [R], Spikeshield [R] Brand; Wire Size 16 to 8 AWG; Enclosure Rating IP20; Contact Material Brass; Temperature Rating -40 to 75 Deg C; Application Industrial
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585872209
• SKU Name: hubw ig2310

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
