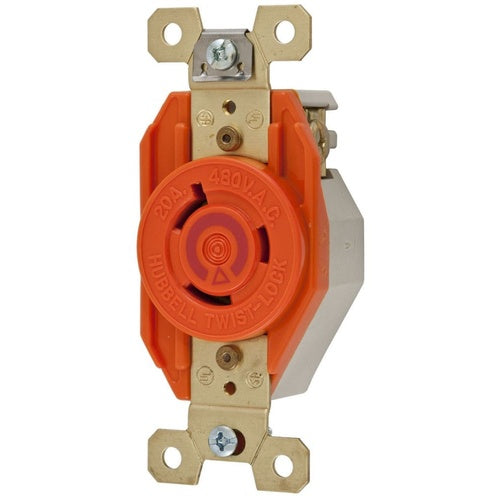

Hubbell IG2340 Locking Receptacle, Ig, 20A 480V, L8-20R, Orange

Overview

Hubbell IG2340 Locking Receptacle, Ig, 20A 480V, L8-20R, Orange

Product Specifications

• UPC: 78358587228
• Number Of Poles: 2
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Face Outer Diameter: 1.563 Inch
• Material: Nylon Face
• Color: Orange
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Temperature Rating -40 to 60 Deg C
• Catalog Number: IG2340
• Brand Name: Twist-Lock[R], SpikeShield[R]
• Model: IG
• Type: Single Locking
• Constructional Feature: Abuse Resistant, Impact Resistant
• Configuration: L7-20R
• Voltage Rating: 480 VAC
• Current Rating: 20 Ampere
• Catalog Description: TWIST-LOCK DEVICES, SINGLE FLUSH RECEPTACLE 20A, 480V AC, 2 POLE, 3 WIRE GROUNDING, NEMA L8-20R, ISOLATED GROUND, NYLON, ORANGE
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face Material; Orange Color; L7-20R Configuration; 3 Wire(S); UL 94/498, CSA C22.2 Approval; 480 VAC Voltage Rating; Flush Mount Mounting; 20 Ampere Current Rating; Isolated Grounding; 2 Pole(S); Abuse Resistant, Impact Resistant; Back, Side Wiring; 1.563 Inch Face Outer Diameter; TWIST-LOCK[R], SPIKESHIELD[R] Brand; Contact Material Brass; Temperature Rating -40 to 60 Deg C; IG Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585872285
• SKU Name: hubw ig2340

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
