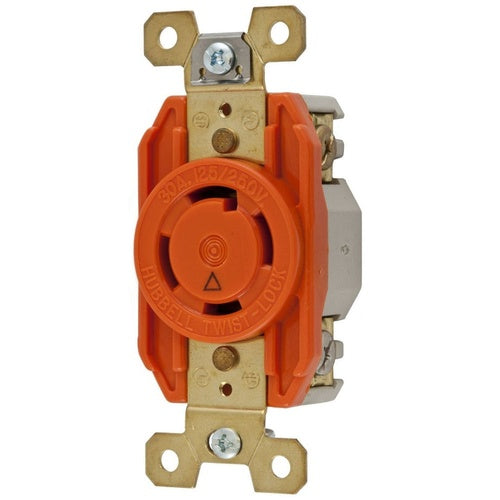

Hubbell IG2710 Locking Receptacle, Ig, 30A 125/250V, L14-30R, Orange

Overview

Hubbell IG2710 Locking Receptacle, Ig, 30A 125/250V, L14-30R, Orange

Product Specifications

• UPC: 78358587242
• Number Of Poles: 3
• Number Of Wires: 4
• Ground Type: Isolated Grounding
• Face Outer Diameter: 1.563 Inch
• Material: Nylon Face
• Color: Orange
• Wiring: Back, Side
• Mounting: Flush Mount
• Approval: UL 94/498, CSA C22.2
• Additional Information: Contact Material Brass; Temperature Rating -40 to 60 Deg C
• Catalog Number: IG2710
• Brand Name: Twist-Lock[R], SpikeShield[R]
• Model: IG
• Type: Single Locking
• Constructional Feature: Abuse Resistant, Impact Resistant
• Configuration: L14-30R
• Voltage Rating: 125/250 V
• Current Rating: 30 Ampere
• Catalog Description: LOCKING DEVICES, TWIST-LOCK, ISOLATED GROUND INDUSTRIAL, FLUSH RECEPTACLE, 30A 125/250V, 3-POLE 4-WIRE GROUNDING, L14-30R, SCREW TERMINAL, ORANGE
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Locking Type; Nylon Face Material; Orange Color; L14-30R Configuration; 4 Wire(S); UL 94/498, CSA C22.2 Approval; 125/250 V Voltage Rating; Flush Mount Mounting; 30 Ampere Current Rating; Isolated Grounding; 3 Pole(S); Abuse Resistant, Impact Resistant; Back, Side Wiring; 1.563 Inch Face Outer Diameter; TWIST-LOCK[R], SPIKESHIELD[R] Brand; Contact Material Brass; Temperature Rating -40 to 60 Deg C; IG Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Locking Device Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585872421
• SKU Name: hubw ig2710

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
