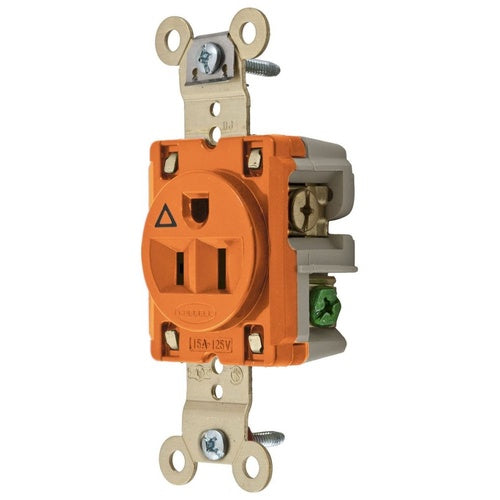

Hubbell IG5261 Single Receptacle, Isolated Ground, 15A 125V, 5-15R, Orange

Overview

Hubbell IG5261 Single Receptacle, Isolated Ground, 15A 125V, 5-15R, Orange

Product Specifications

• UPC: 78358575649
• Ground Type: Isolated Grounding
• Material: Nylon (Face), PBT (Base)
• Color: Orange
• Wiring: Back, Side
• Grade: Extra Heavy Duty, Commercial, Industrial, Specification
• Approval: UL, CSA
• Catalog Number: IG5261
• Brand Name: HBL[R]
• Type: Single
• Configuration: 5-15R
• Voltage Rating: 125 Volt
• Current Rating: 15 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, ISOLATED GROUND, RECEPTACLES, SINGLE, COMMERCIAL/INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, ORANGE, SINGLE PACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Nylon (Face), Pbt (Base) Material; Orange Color; 5-15R Configuration; 3 Wire(S); Extra Heavy Duty, Commercial, Industrial, Specification Grade; UL, CSA Approval; 125 Volt Voltage Rating; 15 Amp Current Rating; Isolated Grounding; 2 Pole(S); Back, Side Wiring; HBL[R] Brand
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585756493
• SKU Name: hubw ig5261

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
