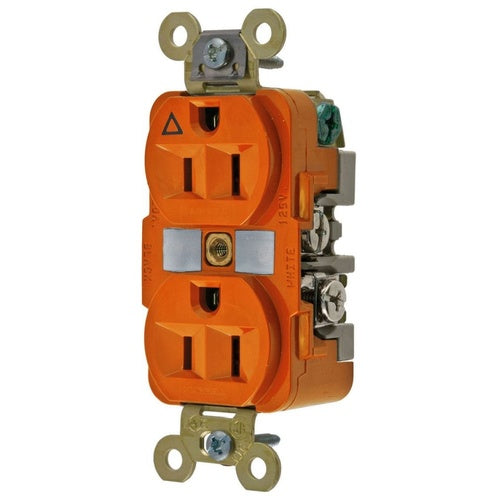

Hubbell IG5262 Duplex Isolated Ground Receptacle-Nema 5-15R

Overview

Hubbell IG5262 Duplex Isolated Ground Receptacle-Nema 5-15R

Product Specifications

• UPC: 78358575653
• Number Of Wires: 3
• Ground Type: Isolated Grounding
• Material: Nylon (Face), Polybutylene Terephthalate (Base)
• Color: Orange
• Wiring: Back, Side
• Grade: Extra Heavy-Duty, Specification
• Approval: UL 498, CSA C22.2, FSUL WC596
• Additional Information: Contact/Strap Material Brass; Operating Temperature -40 to 75 Deg C
• Catalog Number: IG5262
• Brand Name: SpikeShield[R], HBL[R]
• Type: Duplex
• Constructional Feature: Impact Resistant
• Configuration: 5-15R
• Voltage Rating: 125 V
• Current Rating: 15 Ampere
• Number Of Poles: 2
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, DUPLEX, INDUSTRIAL GRADE, ISOLATED GROUND, 2-POLE 3-WIRE GROUNDING, 15A 125V, 5-15R, ORANGE, SINGLE PACK
• Category: Receptacles & Surge Protectors
• Full Technical Description: Duplex Type; Nylon (Face), Polybutylene Terephthalate (Base) Material; Orange Color; 5-15R Configuration; 3 Wire(S); Extra Heavy-Duty, Specification Grade; UL 498, CSA C22.2, FSUL WC596 Approval; 125 V Voltage Rating; 15 Ampere Current Rating; Isolated Grounding; 2 Pole(S); Impact Resistant; Back, Side Wiring; HBL[R] Brand; Contact/Strap Material Brass; Operating Temperature -40 to 75 Deg C
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Duplex/Single Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585756530
• SKU Name: hubw ig5262

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
