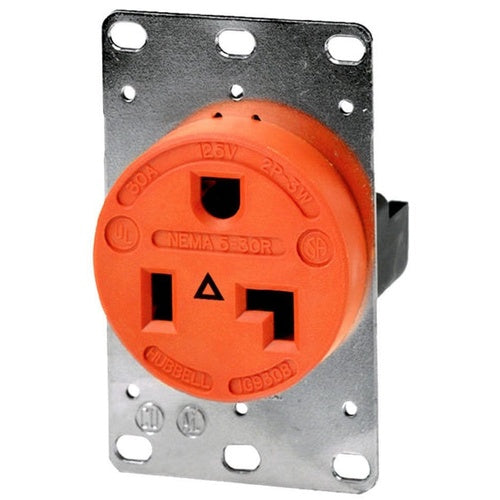

Hubbell IG9308 Single Receptacle, Isolated Ground, 30A 125, 5-30R, Orange

Overview

Hubbell IG9308 Single Receptacle, Isolated Ground, 30A 125, 5-30R, Orange

Product Specifications

• UPC: 78358588070
• Ground Type: Grounding
• Color: Orange
• Material: Reinforced Thermoplastic Polyester
• Face Outer Diameter: 2.12 Inch
• Mounting Depth: 1.69 Inch
• Approval: UL 498, CSA
• Additional Information: Wire Size 12 to 4 AWG Copper; Enclosure Rating IP20; Material Brass (Contact), 0.062 Inch Pre-Plated Steel (Mounting Plate); Temperature Rating -40 to 75 Deg C
• Catalog Number: IG9308
• Brand Name: Wiring Device-Kellems
• Type: Single
• Configuration: 5-30R
• Voltage Rating: 1250 Volt
• Current Rating: 30 Amp
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE DEVICES, RECEPTACLES, FLUSH RECEPTACLE, INDUSTRIAL GRADE , 2-POLE 3-WIRE GROUNDING, 30A 125V, 5-30R, ORANGE, SINGLE PACK.
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Reinforced Thermoplastic Polyester Material; Orange Color; 5-30R Configuration; 3 Wire(S); UL 498, CSA Approval; 1250 Volt Voltage Rating; 30 Amp Current Rating; Grounding; 2 Pole(S); 1.69 Inch Mounting Depth; 2.12 Inch Face Outer Diameter; SPIKESHIELD[R] Brand; Wire Size 12 to 4 AWG Copper; Enclosure Rating IP20; Material Brass (Contact), 0.062 Inch Pre-Plated Steel (Mounting Plate); Temperature Rating -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Power Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585880709
• SKU Name: hubw ig9308
