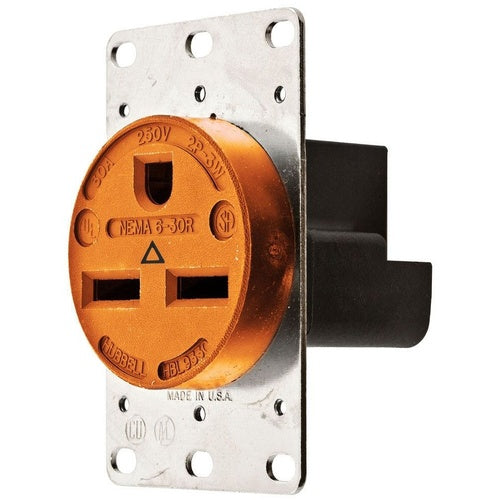

Hubbell IG9330 Single Receptacle, Isolated Ground, 30A 250, 6-30R, Orange

Overview

Hubbell IG9330 Single Receptacle, Isolated Ground, 30A 250, 6-30R, Orange

Product Specifications

• UPC: 78358588075
• Ground Type: Isolated Ground
• Color: Orange
• Material: Reinforced Thermoplastic Polyester
• Face Outer Diameter: 2.12 Inch
• Approval: UL 498, UL 94V-0, CSA C22.2
• Additional Information: Enclosure Type IP20; Operating Temperature -40 to 75 Deg C
• Catalog Number: IG9330
• Brand Name: SpikeShield[R]
• Type: Single
• Configuration: 6-30R
• Voltage Rating: 250 V
• Current Rating: 30 Ampere
• Number Of Poles: 2
• Number Of Wires: 3
• Catalog Description: STRAIGHT BLADE RECEPTACLE, FLUSH RECEPTACLE, INDUSTRIAL GRADE, 2-POLE 3-WIRE GROUNDING, 30A 250V, 5-20R
• Category: Receptacles & Surge Protectors
• Full Technical Description: Single Type; Reinforced Thermoplastic Polyester Material; Orange Color; 6-30R Configuration; 3 Wire(S); UL 498, UL 94V-0, CSA C22.2 Approval; 250 V Voltage Rating; 30 Ampere Current Rating; Isolated Ground; 2 Pole(S); 2.12 Inch Face Outer Diameter; SPIKESHIELD[R] Brand; Enclosure Type IP20; Operating Temperature -40 to 75 Deg C
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Straight Blade Power Receptacle
• Unspsc: 39121406
• UPC 12 Digit: 783585880754
• SKU Name: hubw ig9330

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
