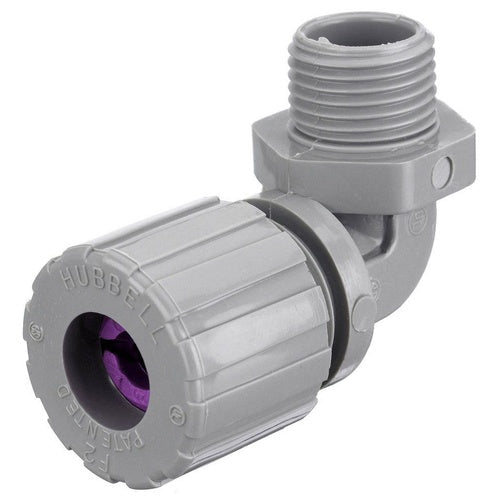

Hubbell NHC1038CR 90D Male Cord Connector, .75-.88", 3/4", Nylon

Overview

Hubbell NHC1038CR 90D Male Cord Connector, .75-.88", 3/4", Nylon

Product Specifications

• UPC: 78358520880
• Application: Hazardous Location
• Additional Information: Color Orchid; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66
• Catalog Number: NHC1038CR
• Model: NHC
• Type: 90 Deg Male
• Thread Size: 3/4 Inch NPT
• Material: Gray Nylon
• Cord Size: 0.75 to 0.88 Inch
• Size: 1.65 Inch Dia x 2.81 Inch L x 2.42 Inch H
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, 90 DEGREE MALE .75-.88", 3/4", NYLON
• Category: Cable & Cord Grips
• Full Technical Description: 90 Deg Male Type; Gray Nylon Material; 1.65 Inch Dia X 2.81 Inch L X 2.42 Inch H Size; UL 514B, CSA Approval; Hazardous Location Application; 3/4 Inch NPT Thread Size; 0.75 to 0.88 Inch Cord Size; Color Orchid; Temperature Rating -30 to 225 Deg F; Enclosure NEMA 4/4X/12/13, IP66; NHC Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585208800
• SKU Name: hubw nhc1038cr

Resources

• Manufacturer Spec Sheet
