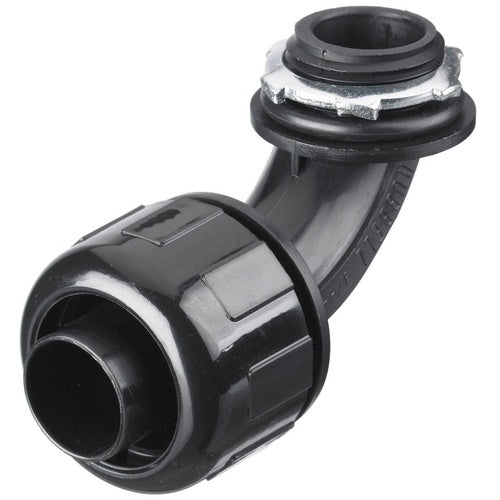

Hubbell P0509NBK 1/2" 90D Male Liquidtite Connector

Overview

Hubbell P0509NBK 1/2" 90D Male Liquidtite Connector

Product Specifications

• UPC: 78358581000
• Additional Information: Size 2.91 Inch Length x 1.98 Inch Height; Operating Temperature -30 to 225 Deg F; Flammability Rating UL94V-2
• Catalog Number: P0509NBK
• Brand Name: PolyTuff[R]
• Type: 90 Degree
• Trade Size: 1/2 Inch
• Material: Black Nylon (Body), Neoprene (O-Ring), Zinc Plated Steel (Lockwasher)
• Standard Package: 25 per Carton
• Approval: UL, CSA
• Used On: Non-Metallic Liquid Tight Conduit
• Catalog Description: KELLEMS WIRE MANAGEMENT, LIQUIDTIGHT SYSTEM, POLYTUFF NON-METALLIC LIQUIDTIGHT FITTINGS, 90 DEGREE MALE LIQUID-TIGHT CONNECTOR, 1/2", BLACK
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: 90 Degree Type; Black Nylon (Body), Neoprene (O-ring), Zinc Plated Steel (Lockwasher) Material; Non-Metallic Liquid Tight Conduit Used on; UL, CSA Approval; 25 Per Carton Standard Package; 1/2 Inch Trade Size; POLYTUFF[R] Brand; Size 2.91 Inch Length X 1.98 Inch Height; Operating Temperature -30 to 225 Deg F; Flammability Rating UL94V-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 783585810003
• SKU Name: hubw p0509nbk

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
