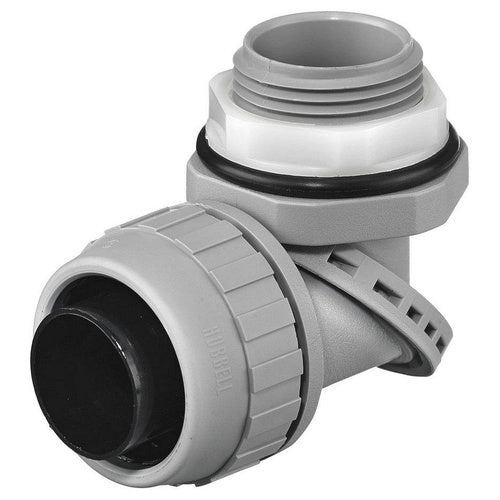

Hubbell PS1009NGY 1" Swivel Male Liquidtite Connector

Overview

Hubbell PS1009NGY 1" Swivel Male Liquidtite Connector

Product Specifications

• UPC: 78358533919
• Catalog Number: PS1009NGY
• Brand Name: Wiring Device-Kellems
• Type: Multi-Position Male
• Trade Size: 1 Inch
• Material: Nylon (Body, Compression Nut), Neoprene (Sealing Ring, O-Ring)
• Approval: UL, CSA
• Used On: Non-Metallic Liquidtight Conduit
• Additional Information: Color Gray; Enclosure Rating NEMA 4/4x/12/13; Temperature Rating -30 to 225 Deg F; Flammability Rating UL 94 V-2
• Catalog Description: KELLEMS WIRE MANAGEMENT, LIQUIDTIGHT SYSTEM, SWIVELLOK MULTI-POSITION MALE LIQUID TIGHT CONNECTOR, 1", NON-METALLIC, GRAY
• Category: Liquid Tight Flex. Conduit Fittings
• Full Technical Description: Multi-Position Male Type; Nylon (Body, Compression Nut), Neoprene (Sealing Ring, O-ring) Material; Non-Metallic Liquidtight Conduit Used on; UL, CSA Approval; 1 Inch Trade Size; Polytuff [R] Brand; Color Gray; Enclosure Rating NEMA 4/4X/12/13; Temperature Rating -30 to 225 Deg F; Flammability Rating UL 94 V-2
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Liquidtight Flexible Conduit Connector
• Unspsc: 39121420
• UPC 12 Digit: 783585339191
• SKU Name: hubw ps1009ngy

Resources

• Manufacturer Spec Sheet
• Technical Drawing
