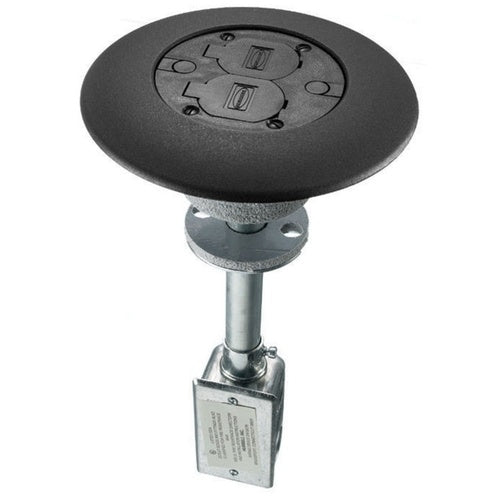

Hubbell PT7FSDBLA Flush Fire-Rated, Poke-Through, W/20A Duplex/Telephone/Data,Black

Overview

Hubbell PT7FSDBLA Flush Fire-Rated, Poke-Through, W/20A Duplex/Telephone/Data,Black

Product Specifications

• UPC: 78358549405
• Capacity: 13 Cu Inch
• Number Of Knockouts: 8
• Knockout Size: 3/4 Inch
• Cored Hole Diameter: 3 Inch
• Material: Non-Metallic Cover, Painted Aluminum Flange
• Color: Black
• Size: 7 Inch Dia x 13.24 Inch H
• Fire Rated: Yes
• Cover Type: PFBRCB
• Cover Mounting: Carpet Flange
• Catalog Number: PT7FSDBLA
• Approval: UL 514A, UL (Canada and US)
• Additional Information: Conductor Size 12 AWG THHN Stranded Copper; Floor Thickness Range 2-1/4 to 7 Inch
• Brand Name: ScrubShield[R]
• Model: PT7
• Type: Flush, Through Floor
• Cover/Service Head Configuration: (1) Duplex Receptacle, (1) 3/4 Inch EMT Power, (2) 1/2 Inch EMT Low Voltage
• Receptacle Voltage Rating: 125 V
• Receptacle Current Rating: 20 Ampere
• Junction Box Included: Yes
• Catalog Description: IN-FLOOR DELIVERY SYSTEMS, FIRE-RATED POKE-THROUGHS, FLUSH DUPLEX SERIES, COMPLETE UNIT WITH 20A DUPLEX, (2) 1/2" DIAMETER HOLES FOR LOW VOLTAGE WIRING, BLACK
• Category: Floor Boxes & Accessories
• Full Technical Description: Flush, Through Floor Type; Non-Metallic Cover, Painted Aluminum Flange Material; 7 Inch Dia X 13.24 Inch H Size; Black Color; UL 514A, UL (Canada and Us) Approval; Pfbrcb Cover Type; 13 Cu Inch Capacity; 3/4 Inch Knockout Size; 8 Knockout(S); Carpet Flange Cover Mounting; 20 Ampere Receptacle Current Rating; 125 V Receptacle Voltage Rating; Yes Fire Rated; (1) Duplex Receptacle, (1) 3/4 Inch EMT Power, (2) 1/2 Inch EMT Low Voltage; 3 Inch Cored Hole Diameter; Yes Junction Box Included; SCRUBSHIELD[R] Brand; Conductor Size 12 AWG THHN Stranded Copper; Floor Thickness Range 2-1/4 to 7 Inch; PT7 Model
• Manufacturer: HUBBELL WIRING DEVICE/KELLEMS
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Poke Through Assembled Unit
• Unspsc: 39121328
• UPC 12 Digit: 783585494050
• SKU Name: hubw pt7fsdbla
