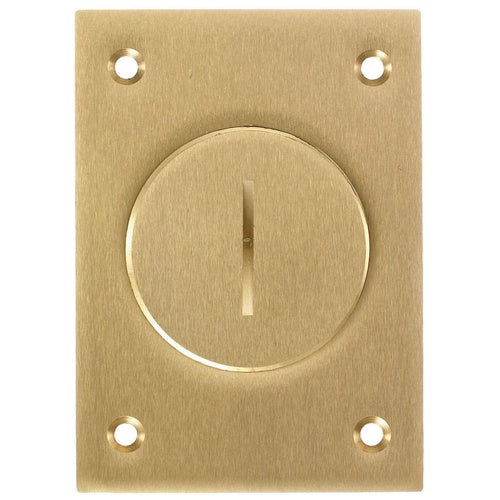

Hubbell S2825 Single Rectangular Floor Box Cover Brass

Overview

Hubbell S2825 Single Rectangular Floor Box Cover Brass

Product Specifications

• UPC: 78358511960
• Material: Brass
• Finish: Brass
• Service Type: Flush, Single Service, Carpet Flange
• Approval: UL, CSA
• Catalog Number: S2825
• Brand Name: ScrubShield[R]
• Type: Rectangular
• Device Type: (1) 2-1/8 Inch Dia Single Receptacle
• Height: 4.15 Inch
• Width: 2.99 Inch
• Number Of Gangs: 1
• Box Size: 6.9 Inch L x 5.44 Inch W x 6 Inch H, 4.69 Inch L x 4.69 Inch W x 3.2 Inch H, 4.69 Inch L x 4.69 Inch W x 2.9 Inch H, 6 Inch L x 4.81 Inch W x 3.72 Inch H, 6 Inch L x 4.81 Inch W x 2.74 Inch H, 6 Inch L x 4.81 Inch W x 3.9 Inch H, 4.5 Inch L x 3.2 Inch W x
• Catalog Description: FLUSH CONCRETE FLOOR BOX SERIES, 1-GANG COVER, RETANGULAR, 2-1/8" THREADED OPENING, BRASS
• Category: Floor Boxes & Accessories
• Full Technical Description: Rectangular Type; Brass Material; Brass Finish; 2.99 Inch; 4.15 Inch; 1 Gang(S); UL, CSA Approval; Flush, Single Service, Carpet Flange Service Type; (1) 2-1/8 Inch Dia Single Receptacle Device Type; 6.9 Inch L X 5.44 Inch W X 6 Inch H, 4.69 Inch L X 4.69 Inch W X 3.2 Inch H, 4.69 Inch L X 4.69 Inch W X 2.9 Inch H, 6 Inch L X 4.81 Inch W X 3.72 Inch H, 6 Inch L X 4.81 Inch W X 2.74 Inch H, 6 Inch L X 4.81 Inch W X 3.9 Inch H, 4.5 Inch L X 3.2 Inch W X 3.13 Inch H Box Size; SCRUBSHIELD[R] Brand
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Floor Box Cover Plate
• Unspsc: 39121302
• UPC 12 Digit: 783585119601
• SKU Name: hubw s2825

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
