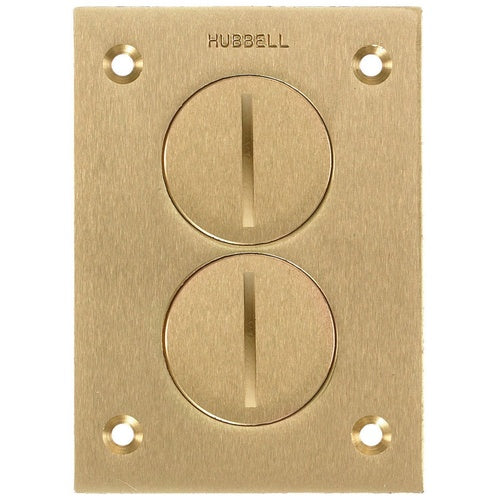

Hubbell S3625 Duplex Rectangular Floor Box Cover Brass

Overview

Hubbell S3625 Duplex Rectangular Floor Box Cover Brass

Product Specifications

• UPC: 78358512380
• Finish: Brushed
• Service Type: Flush
• Approval: UL, CSA
• Additional Information: Screw Size 1-1/2 Inch
• Catalog Number: S3625
• Brand Name: Wiring Device-Kellems
• Type: Rectangular
• Device Type: (1) Duplex Receptacle
• Height: 4.15 Inch
• Width: 2.99 Inch
• Number Of Gangs: 1
• Material: Brass
• Catalog Description: FLUSH CONCRETE FLOOR BOX SERIES, 1-GANG COVER, RECTANGULAR, DUPLEX THREADED SCREWS, BRASS
• Category: Floor Boxes & Accessories
• Full Technical Description: Rectangular Type; Brass Material; Brushed Finish; 2.99 Inch; 4.15 Inch; 1 Gang(S); UL, CSA Approval; Flush Service Type; (1) Duplex Receptacle Device Type; SCRUBSHIELD[R] Brand; Screw Size 1-1/2 Inch
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Floor Box Cover Plate
• Unspsc: 39121302
• UPC 12 Digit: 783585123806
• SKU Name: hubw s3625

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
