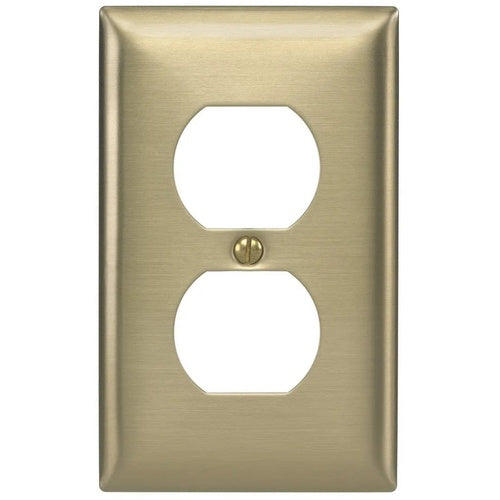

Hubbell SB8 Wallplate 1-Gang, Duplex, Brass

Overview

Hubbell SB8 Wallplate 1-Gang, Duplex, Brass

Product Specifications

• UPC: 88377820030
• Catalog Number: SB8
• Model: SB
• Configuration: (1) Duplex Receptacle
• Number Of Gangs: 1
• Designated Size: Standard
• Material: Brass
• Additional Information: Overall Dimension 2.88 Inch W x 4.63 Inch H x 0.04 Inch Thk; Temperature Rating -40 to 85 Deg C; Approval UL, CSA
• Catalog Description: TWIST-LOCK DEVICES, WALLPLATES, 1-GANG, ACCESSORIES FOR 15A2 AND 3 WIRE DEVICES .04" (1.0), HORIZONTAL BRUSHED FINISH
• Category: Wall Plates & Covers
• Full Technical Description: Straight Blade, Stamped, Twist-Lock Type; Brass Material; Lacquer Coated Finish; Brass Color; (1) Duplex Receptacle Configuration; 1 Gang(S); Standard Designated Size; RoHS Compliant; Thickness 0.04 Inch; Temperature Rating -40 to 85 Deg C; Orientation Vertical; Mounting Type Slotted Head Screw; For 15/20 Amp, 125/250/277 Volt AC Devices; Application Marine; Approval UL, CSA
• Manufacturer: Hubbell Wiring Systems
• Manufacturer Brand: Hubbell Wiring Systems
• Sub Category: Standard Wall Plate
• Unspsc: 39121704
• UPC 12 Digit: 883778200304
• SKU Name: hubw sb8

Resources

• Manufacturer Spec Sheet
