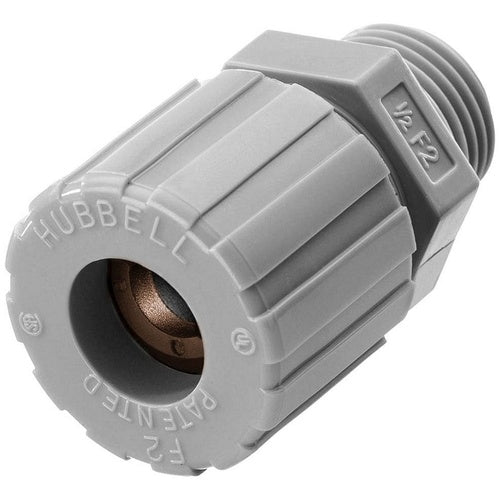

Hubbell SHC1036CR Cord Connector Straight Male, .50-.63", 3/4", Nylon, Gray

Overview

Hubbell SHC1036CR Cord Connector Straight Male, .50-.63", 3/4", Nylon, Gray

Product Specifications

• UPC: 78358520808
• Application: Hazardous Location
• Additional Information: Form Size F3; Color Code Brown; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Catalog Number: SHC1036CR
• Brand Name: Wiring Device-Kellems
• Type: Straight Male
• Thread Size: 3/4 Inch Threaded
• Material: Gray Nylon
• Cord Size: 0.5 to 0.63 Inch
• Size: 1.56 Inch Diameter x 2.15 Inch Length
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, .50"-.63", 3/4", NYLON
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Gray Nylon Material; 1.56 Inch Diameter X 2.15 Inch Length Size; UL 514B, CSA Approval; Hazardous Location Application; 3/4 Inch Threaded Thread Size; 0.5 to 0.63 Inch Cord Size; Form Size F3; Color Code Brown; Enclosure Rating NEMA 4/4X/12/13, IP66; Temperature Rating -30 to 225 Deg F
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585208084
• SKU Name: hubw shc1036cr
