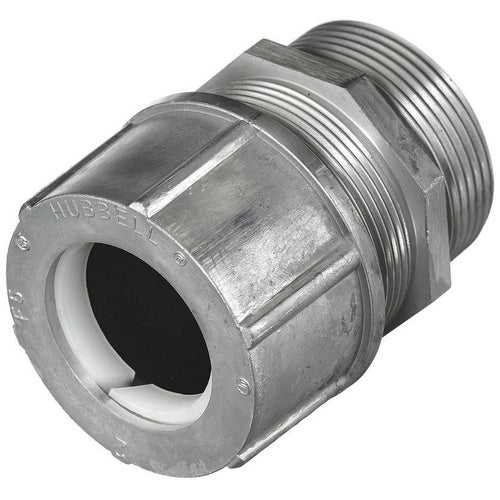

Hubbell SHC1071 Cord Connector, Straight Male, 1.81-1.94", 2", Alum

Overview

Hubbell SHC1071 Cord Connector, Straight Male, 1.81-1.94", 2", Alum

Product Specifications

• UPC: 78358520071
• Application: Hazardous Location
• Additional Information: Color White; Temperature Rating -30 to 240 Deg F; Enclosure NEMA 4/4X/12/13, IP66
• Catalog Number: SHC1071
• Model: SHC
• Type: Straight Male
• Thread Size: 2 Inch NPT
• Material: Cast Aluminum
• Cord Size: 1.81 to 1.94 Inch
• Size: 3.85 Inch Dia x 3.58 Inch L
• Approval: UL 514B, CSA
• Catalog Description: KELLEMS WIRE MANAGEMENT, CORD CONNECTORS, STRAIGHT MALE, 1.81-1.94", 2", ALUMINUM
• Category: Cable & Cord Grips
• Full Technical Description: Straight Male Type; Cast Aluminum Material; 3.85 Inch Dia X 3.58 Inch L Size; UL 514B, CSA Approval; Hazardous Location Application; 2 Inch NPT Thread Size; 1.81 to 1.94 Inch Cord Size; Color White; Temperature Rating -30 to 240 Deg F; Enclosure NEMA 4/4X/12/13, IP66; SHC Model
• Manufacturer: Hubbell Wiring Devices-Kellems
• Manufacturer Brand: Hubbell Wiring Devices-Kellems
• Sub Category: Flexible Cord/Cable Connector
• Unspsc: 39121431
• UPC 12 Digit: 783585200712
• SKU Name: hubw shc1071 1.8121.937

Resources

• Manufacturer Spec Sheet
• Technical Line Drawing
