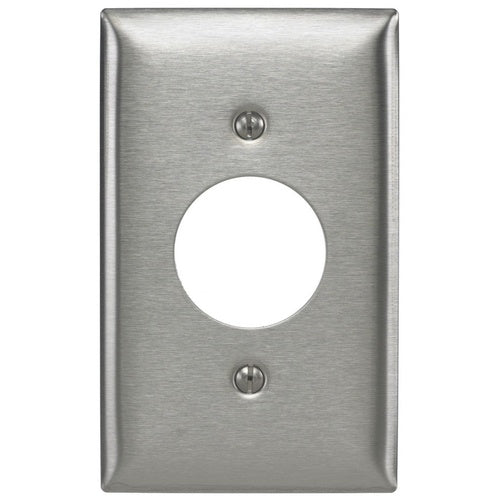

Hubbell SS7 Wallplate, 1-Gang, 1.40", Stainless Steel

Overview

Hubbell SS7 Wallplate, 1-Gang, 1.40", Stainless Steel

Product Specifications

• UPC: 88377820110
• Finish: Horizontal Brushed
• Additional Information: Mounting Screw Type Slotted Head; Mounting Screw Material 302/304 Stainless Steel; Overall Dimension 2.87 Inch Width x 4.5 Inch Height; Temperature Rating -40 to 85 Deg C; Application Industrial and Commercial; Approval UL, CSA
• Catalog Number: SS7
• Brand Name: Wiring Device-Kellems
• Model: SS
• Type: Twist-Lock
• Configuration: (1) 1.4 Inch Diameter Hole Single Receptacle
• Number Of Gangs: 1
• Designated Size: Standard
• Material: 302/304 Stainless Steel
• Catalog Description: LOCKING DEVICES, 50 AMP LOCKING ACCESSORIES, WALLPLATES, STAINLESS STEEL 302/304, 1- GANG.
• Category: Wall Plates & Covers
• Full Technical Description: Straight Blade, Stamped, Twist-Lock Type; 302/304 Stainless Steel Material; Smooth Finish; (1) 1.4 Inch Single Receptacle Configuration; 1 Gang(S); Standard Designated Size; RoHS Compliant; Thickness 0.035 Inch; Temperature Rating -40 to 85 Deg C; For 15 Amp 2 and 3 Wire Devices; Appearance Horizontal Brushed; Orientation Vertical; Mounting Type 302/304 Stainless Steel Slotted Head Screw; Approval UL, CSA
• Manufacturer: Hubbell Wiring Systems
• Manufacturer Brand: Hubbell Wiring Systems
• Sub Category: Standard Wall Plate
• Unspsc: 39121704
• UPC 12 Digit: 883778201103
• SKU Name: hubw ss7

Resources

• Manufacturer Spec Sheet
