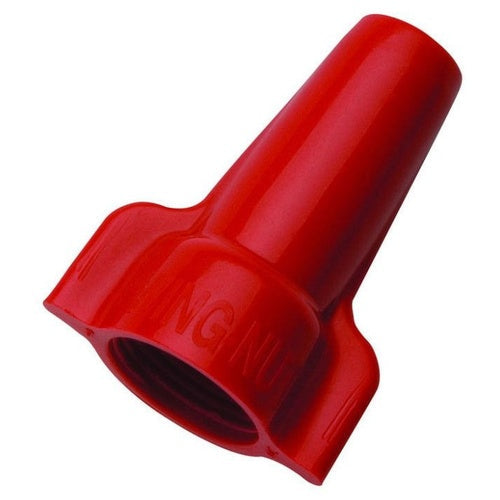

Ideal 30-452 Wing-Nut Wire Connector, Model 452 Red, 100/Box

Overview

Ideal 30-452 Wing-Nut Wire Connector, Model 452 Red, 100/Box

Product Specifications

• UPC: 78325030452
• Maximum Wire Combination Size: (1) 6 AWG
• Spring Type: Live Action
• Shell Material: Zinc Plated Thermoplastic Polymer
• Color: Red
• Temperature Rating: 221 Deg F
• Approval: UL, CSA, IEC
• Additional Information: RoHS Compliant; Insert Material Steel; Overall Dimension 0.92 Inch Width x 1.21 Inch Height; Strip Length 1/2 Inch
• Catalog Number: 30-452
• Brand Name: WING-NUT[R]
• Model: 452
• Type: Contoured Wing
• Voltage Rating: 600 Volt
• Wire Type: Solid and/or Stranded
• Wire Size: 18 to 6 AWG
• Minimum Wire Combination Size: (4 to 6) 22 AWG
• Catalog Description: IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 18 - 8 AWG, MIN 2 - 18, MAX 4-10, MATERIAL: FLAME-RETARDANT POLYPROPELENE SHELL, COLOR: RED, VOLTAGE RATING: 600 V, MODEL NUMBER: 452, WIDTH: 1-15/64 IN, HEIGHT: 15/16 IN, FLAMMABILITY RATING: UL 94V-2
• Category: Fixture Connectors (Wire-Nuts,Etc.)
• Full Technical Description: Contoured Wing Type; Red Color; (4 to 6) 22 AWG min. Wire Combination Size; (1) 6 AWG Max. Wire Combination Size; 18 to 6 AWG Wire Size; UL, CSA, IEC Approval; 600 Volt Voltage Rating; 221 Deg F Temperature Rating; Solid And/Or Stranded Wire Type; Zinc Plated Thermoplastic Polymer Shell Material; Live Action Spring Type; Wing-Nut [R] Brand; RoHS Compliant; Insert Material Steel; Overall Dimension 0.92 Inch Width X 1.21 Inch Height; Strip Length 1/2 Inch; 452 Model
• Made In Usa: Yes
• Manufacturer: Ideal Industries, Inc.
• Manufacturer Brand: Ideal Industries, Inc.
• Sub Category: Twist On Wire Connector
• Unspsc: 39121445
• UPC 12 Digit: 783250304523
• SKU Name: ideal 30452

Resources

• Manufacturer Spec Sheet
