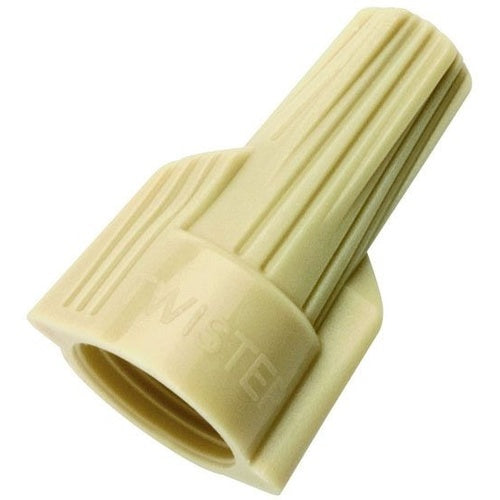

Ideal 30-641 Twister Wire Connector, Model 341 Tan, 500/Bag

Overview

Ideal 30-641 Twister Wire Connector, Model 341 Tan, 500/Bag

Product Specifications

• UPC: 78325030641
• Spring Type: Live Action, Expanding Square Wire
• Shell Material: Thermoplastic Polyester
• Color: Tan
• Temperature Rating: 105 Deg C
• Standard Package: 500 per Bag
• Approval: UL 774A/486C, CSA C22.2, CE
• Additional Information: Overall Dimension 0.54 Inch Diameter x 0.72 Inch Width x 1.14 Inch Height; Strip Length 1/2 Inch; Insert Material Steel; Finish Zinc Plated; Application Residential, Commercial; Includes Solid-to-Strand; Applicable Standard IEC 998-2/998-2-4, Federal Spec
• Catalog Number: 30-641
• Brand Name: Twister[R]
• Model: 341
• Type: Swept Wing, Ribbed Cap
• Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
• Wire Size: 22 to 8 AWG
• Minimum Wire Combination Size: (3) #22
• Maximum Wire Combination Size: (3) #10
• Catalog Description: IDEAL, WIRE CONNECTOR, TWISTER, NUMBER OF CONDUCTORS: 1 TO 6, CONDUCTOR RANGE: 22 - 8 AWG, 3/22 AWG MIN, 3/10 AWG MAX, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: TAN, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), WIRE TYPE: CU/CU, MODEL NUMBER: 341
• Category: Fixture Connectors (Wire-Nuts,Etc.)
• Full Technical Description: Swept Wing, Ribbed Cap Type; Tan Color; (3) #22 min. Wire Combination Size; (3) #10 Max. Wire Combination Size; 22 to 8 AWG Wire Size; UL 774A/486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 500 Per Bag Standard Package; Thermoplastic Polyester Shell Material; Live Action, Expanding Square Wire Spring Type; Twister [R] Brand; Overall Dimension 0.54 Inch Diameter X 0.72 Inch Width X 1.14 Inch Height; Strip Length 1/2 Inch; Insert Material Steel; Finish Zinc Plated; Application Residential, Commercial; Includes Solid-to-Strand; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E; 341 Model
• Made In Usa: Yes
• Manufacturer: Ideal Industries, Inc.
• Manufacturer Brand: Ideal Industries, Inc.
• Sub Category: Twist On Wire Connector
• Unspsc: 39121445
• UPC 12 Digit: 783250306411
• SKU Name: ideal 30641

Resources

• Manufacturer Spec Sheet
