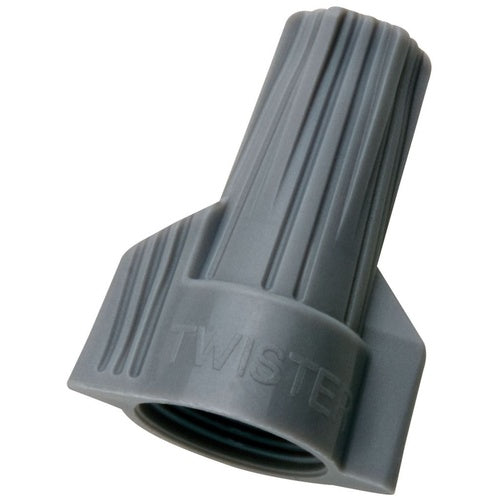

Ideal 30-642 Twister 342, Gray, 250/Bag

Overview

Ideal 30-642 Twister 342, Gray, 250/Bag

Product Specifications

• UPC: 78325030642
• Maximum Wire Combination Size: (2) #8, (2) #12
• Spring Type: Expanding, Square Wire, Live Action
• Shell Material: Thermoplastic Polyester
• Color: Gray
• Temperature Rating: 105 Deg C
• Standard Package: 250 per Bag
• Approval: UL 486C, CSA C22.2, CE
• Additional Information: Insert Material Steel; Finish Zinc Plated; Strip Length 5/8 Inch; Overall Dimension 0.66 Inch Diameter x 1 Inch Width x 1.31 Inch Height; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E
• Catalog Number: 30-642
• Brand Name: Twister[R]
• Model: 342
• Type: Swept Wing, Ribbed Cap, Hex Head
• Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
• Wire Type: Copper
• Wire Size: 18 to 6 AWG
• Minimum Wire Combination Size: (3) #14
• Catalog Description: IDEAL, WIRE CONNECTOR, TWISTER, CONDUCTOR RANGE: 18 - 6 AWG, 3/14 AWG MIN, 2/8 AWG WITH 2/12 AWG MAX, NUMBER OF CONDUCTORS: 1 TO 6, MATERIAL: FLAME-RETARDANT POLYPROPELENE, COLOR: GRAY, VOLTAGE RATING: 600 V, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), WIRE TYPE: CU/CU, MODEL NUMBER: 342
• Category: Fixture Connectors (Wire-Nuts,Etc.)
• Full Technical Description: Swept Wing, Ribbed Cap, Hex Head Type; Gray Color; (3) #14 min. Wire Combination Size; (2) #8, (2) #12 Max. Wire Combination Size; 18 to 6 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 250 Per Bag Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Expanding, Square Wire, Live Action Spring Type; Twister [R] Brand; Insert Material Steel; Finish Zinc Plated; Strip Length 5/8 Inch; Overall Dimension 0.66 Inch Diameter X 1 Inch Width X 1.31 Inch Height; Applicable Standard IEC 998-2/998-2-4, Federal Specification W-S-610E; 342 Model
• Made In Usa: Yes
• Manufacturer: Ideal Industries, Inc.
• Manufacturer Brand: Ideal Industries, Inc.
• Sub Category: Twist On Wire Connector
• Unspsc: 39121445
• UPC 12 Digit: 783250306428
• SKU Name: ideal 30642

Resources

• Manufacturer Spec Sheet
