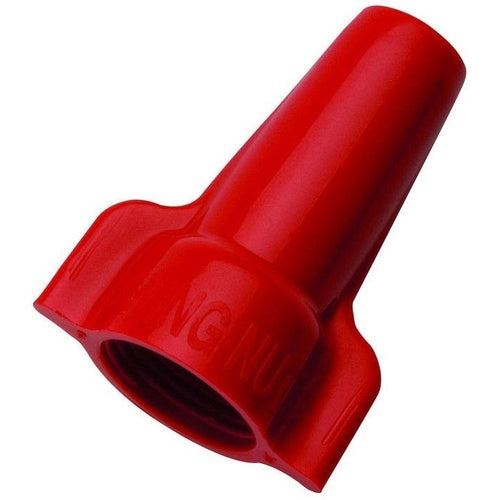

Ideal 30-652 Wing-Nut Wire Connector, Model 452 Red, 500/Bag

Overview

Ideal 30-652 Wing-Nut Wire Connector, Model 452 Red, 500/Bag

Product Specifications

• UPC: 78325030652
• Maximum Wire Combination Size: (4) #10
• Spring Type: Wide Range, Expanding, Live Action
• Shell Material: Thermoplastic Polyester
• Color: Red
• Temperature Rating: 105 Deg C
• Standard Package: 500 per Bag
• Approval: UL 486C, CSA C22.2, CE
• Additional Information: RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 1/2 Inch; Overall Dimension 0.6 Inch Diameter x 0.92 Inch Width x 1.21 Inch Height; Applicable Standard IEC 998-2-4
• Catalog Number: 30-652
• Brand Name: Wing-Nut[R]
• Model: 452
• Type: High Leverage, Contoured Wing
• Voltage Rating: 600 Volt, 1000 Volt (Sign/Luminaires)
• Wire Type: Copper
• Wire Size: 18 to 8 AWG
• Minimum Wire Combination Size: (2) #18
• Catalog Description: IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 18 - 8 AWG, MIN 2 - 18, MAX 4-10, MATERIAL: FLAME-RETARDANT POLYPROPELENE SHELL, COLOR: RED, VOLTAGE RATING: 600 V, MODEL NUMBER: 452, WIDTH: 1-15/64 IN, HEIGHT: 15/16 IN, FLAMMABILITY RATING: UL 94V-2
• Category: Fixture Connectors (Wire-Nuts,Etc.)
• Full Technical Description: High Leverage, Contoured Wing Type; Red Color; (2) #18 min. Wire Combination Size; (4) #10 Max. Wire Combination Size; 18 to 8 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Sign/Luminaires) Voltage Rating; 105 Deg C Temperature Rating; 500 Per Bag Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Wide Range, Expanding, Live Action Spring Type; Wing-Nut [R] Brand; RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 1/2 Inch; Overall Dimension 0.6 Inch Diameter X 0.92 Inch Width X 1.21 Inch Height; Applicable Standard IEC 998-2-4; 452 Model
• Made In Usa: Yes
• Manufacturer: Ideal Industries, Inc.
• Manufacturer Brand: Ideal Industries, Inc.
• Sub Category: Twist On Wire Connector
• Unspsc: 39121445
• UPC 12 Digit: 783250306527
• SKU Name: ideal 30652
