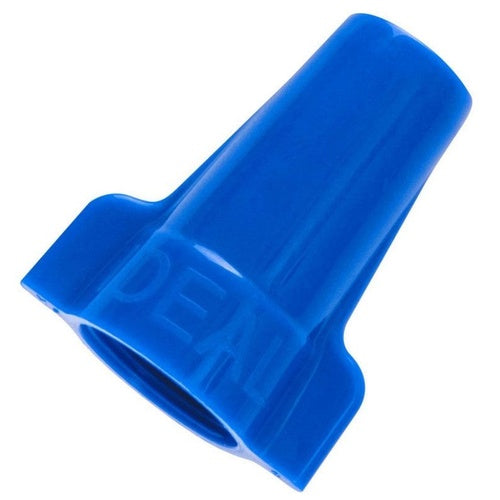

Ideal 30-654 Wing-Nut Wire Connector, Model 454 Blue, 100/Bag

Overview

Ideal 30-654 Wing-Nut Wire Connector, Model 454 Blue, 100/Bag

Product Specifications

• UPC: 78325030654
• Maximum Wire Combination Size: (1) #6, (2) #8
• Spring Type: Wide Range, Expanding, Live Action
• Shell Material: Thermoplastic Polyester
• Color: Blue
• Temperature Rating: 105 Deg C
• Standard Package: 100 per Bag
• Approval: UL 486C, CSA C22.2, CE
• Additional Information: RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 7/8 Inch; Overall Dimension 0.78 Inch Diameter x 1.2 Inch Width x 1.45 Inch Height; Applicable Standard IEC 998-2-4
• Catalog Number: 30-654
• Brand Name: Wing-Nut[R]
• Model: 454
• Type: High-Leverage, Contoured Wing
• Voltage Rating: 600 Volt, 1000 Volt (Fixture/Sign)
• Wire Type: Copper
• Wire Size: 14 to 6 AWG
• Minimum Wire Combination Size: (3) #12
• Catalog Description: IDEAL, WIRE CONNECTOR, WING-NUT, TWIST-ON, NUMBER OF CONDUCTORS: 1 TO 6, ENVIRONMENTAL CONDITIONS: TOUGH, UL 94V-2 FLAME-RETARDANT SHELL RATED AT 105 DEG C (221 F), CONDUCTOR RANGE: 14 - 6 AWG, MIN 3 - 12, MAX 1-6 W/2-8, MATERIAL: FLAME-RETARDANT POLYPROPELENE SHELL, COLOR: BLUE, VOLTAGE RATING: 600 V, MODEL NUMBER: 454, FLAMMABILITY RATING: UL94V-2
• Category: Fixture Connectors (Wire-Nuts,Etc.)
• Full Technical Description: High-Leverage, Contoured Wing Type; Blue Color; (3) #12 min. Wire Combination Size; (1) #6, (2) #8 Max. Wire Combination Size; 14 to 6 AWG Wire Size; UL 486C, CSA C22.2, CE Approval; 600 Volt, 1000 Volt (Fixture/Sign) Voltage Rating; 105 Deg C Temperature Rating; 100 Per Bag Standard Package; Copper Wire Type; Thermoplastic Polyester Shell Material; Wide Range, Expanding, Live Action Spring Type; Wing-Nut [R], 454 [R] Brand; RoHS Compliant; Insert Material Steel; Finish Zinc Plated; Strip Length 7/8 Inch; Overall Dimension 0.78 Inch Diameter X 1.2 Inch Width X 1.45 Inch Height; Applicable Standard IEC 998-2-4; 454 Model
• Made In Usa: Yes
• Manufacturer: Ideal Industries, Inc.
• Manufacturer Brand: Ideal Industries, Inc.
• Sub Category: Twist On Wire Connector
• Unspsc: 39121445
• UPC 12 Digit: 783250306541
• SKU Name: ideal 30654

Resources

• Manufacturer Spec Sheet
