ILSCO ALNN-1000-12-134 Aluminum Compression Lug

Overview

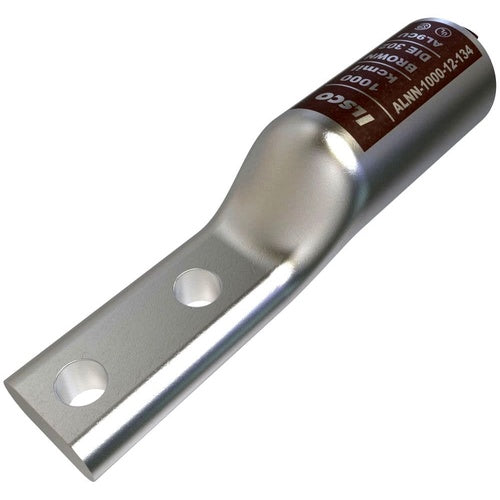

Ilsco ALNN-1000-12-134 Aluminum Compression Lug

Product Specifications

• UPC: 78366968794
• Pad Size: 3 Inch Length x 1.578 Inch Width
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Brown
• Die Index: P302
• Material: Electro-Tin Plated Aluminum Alloy
• Overall Length: 7.021 Inch
• Approval: UL E6207/453G/486A/B, CSA
• Additional Information: RoHS Compliant; Size 1.18 Inch Inner Diameter x 1.84 Inch Outer Diameter; Stud Hole Diameter 0.562 Inch; Cable Entry Type Chamfered Entry; Without Sight Hole; Temperature Rating 90 Deg C
• Catalog Number: ALNN-1000-12-134
• Brand Name: SureCrimp[R]
• Model: ALNN
• Voltage Rating: 35 Kilovolt
• Conductor Material: Copper/Aluminum
• Conductor Size: 1000 KCMIL
• Barrel Type: Narrow, Long
• Barrel Length: 2.996 Inch
• Catalog Description: SURECRIMP ALUMINUM COMPRESSION LUG, CONDUCTOR SIZE 1000, 2 HOLES, 1/2IN BOLT SIZE, 1-3/4IN HOLE SPACING, NARROW TANG, LONG BARREL, NO SIGHT WINDOW, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electro-Tin Plated Aluminum Alloy Material; Brown Color; 7.021 Inch Overall Length; 2.996 Inch Barrel Length; Copper/Aluminum Conductor Material; UL E6207/453G/486A/B, CSA Approval; 35 Kilovolt Voltage Rating; 1000 kcmil Conductor Size; 1/2 Inch Stud Size; P302 Die Index; 3 Inch Length X 1.578 Inch Width Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Narrow, Long Barrel Type; SURECRIMP[R] Brand; RoHS Compliant; Size 1.18 Inch Inner Diameter X 1.84 Inch Outer Diameter; Stud Hole Diameter 0.562 Inch; Cable Entry Type Chamfered Entry; Without Sight Hole; Temperature Rating 90 Deg C; ALNN Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669687941
• SKU Name: ilsco alnn100012134
