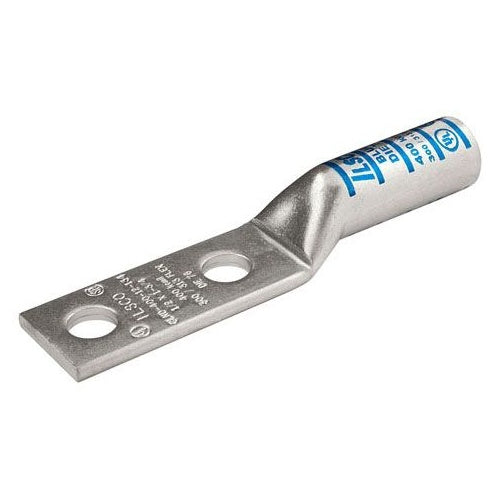

ILSCO CLND-700-12-134 2-Hole Lug

Overview

Ilsco CLND-700-12-134 2-Hole Lug

Product Specifications

• UPC: 78366964882
• Pad Size: 3 Inch Length x 1.816 Inch Width x 0.259 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Pink
• Die Index: I-99
• Material: Electro Tin Plated High Strength Seamless Copper
• Overall Length: 6.556 Inch
• Approval: UL 453G/467/486A/B, CSA
• Additional Information: RoHS Compliant; Less Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 2.749 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3
• Catalog Number: CLND-700-12-134
• Brand Name: SureCrimp[R]
• Model: CLND
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 700 KCMIL
• Barrel Type: Long, Straight
• Barrel Length: 2.687 Inch
• Catalog Description: SURECRIMP COPPER COMPRESSION LUG, CONDUCTOR SIZE 700, 2 HOLES, 1/2IN BOLT SIZE, 1-3/4IN HOLE SPACING, LONG BARREL, NO SIGHT WINDOW, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated High Strength Seamless Copper Material; Pink Color; 6.556 Inch Overall Length; 2.687 Inch Barrel Length; Copper Conductor Material; UL 453G/467/486A/B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 700 kcmil Conductor Size; 1/2 Inch Stud Size; I-99 Die Index; 3 Inch Length X 1.816 Inch Width X 0.259 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; Surecrimp [R] Brand; RoHS Compliant; Less Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 2.749 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3; CLND Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669648829
• SKU Name: ilsco clnd70012134
