ILSCO CLND-750-12-134 2-Hole Lug

Overview

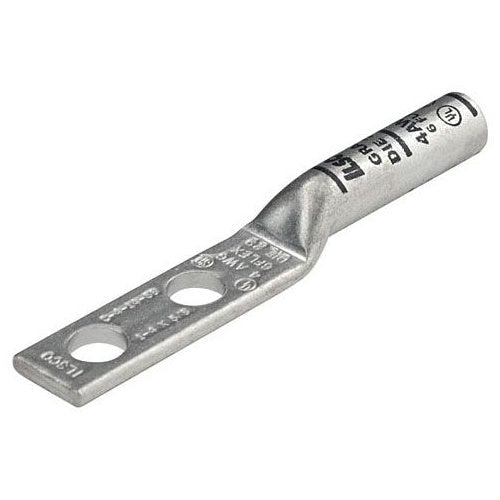

Ilsco CLND-750-12-134 2-Hole Lug

Product Specifications

• UPC: 78366964954
• Pad Size: 3 Inch Length x 1.901 Inch Width x 0.282 Inch Thickness
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1.75 Inch
• Stud Size: 1/2 Inch
• Color: Black
• Die Index: I-106
• Material: Electro Tin Plated High Strength Seamless Copper
• Overall Length: 6.777 Inch
• Approval: UL 453G/467/486A/B, CSA
• Additional Information: RoHS Compliant; Less Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 2.937 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3
• Catalog Number: CLND-750-12-134
• Brand Name: SureCrimp[R]
• Model: CLND
• Voltage Rating: 600 Volt to 35 Kilovolt
• Conductor Material: Copper
• Conductor Size: 750 KCMIL
• Barrel Type: Long, Straight
• Barrel Length: 2.875 Inch
• Catalog Description: SURECRIMP COPPER COMPRESSION LUG, CONDUCTOR SIZE 750, 2 HOLES, 1/2IN BOLT SIZE, 1-3/4IN HOLE SPACING, LONG BARREL, NO SIGHT WINDOW, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Electro Tin Plated High Strength Seamless Copper Material; Black Color; 6.777 Inch Overall Length; 2.875 Inch Barrel Length; Copper Conductor Material; UL 453G/467/486A/B, CSA Approval; 600 Volt to 35 Kilovolt Voltage Rating; 750 kcmil Conductor Size; 1/2 Inch Stud Size; I-106 Die Index; 3 Inch Length X 1.901 Inch Width X 0.282 Inch Thickness Pad Size; 2 Pad Hole(S); 1.75 Inch Pad Hole Spacing; Long, Straight Barrel Type; Surecrimp [R] Brand; RoHS Compliant; Less Sight Hole; Cable Entry Type Chamfered; Wire Strip Length 2.937 Inch; Temperature Rating 90 Deg C; Applicable Standard NEBS3; CLND Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669649543
• SKU Name: ilsco clnd75012134
