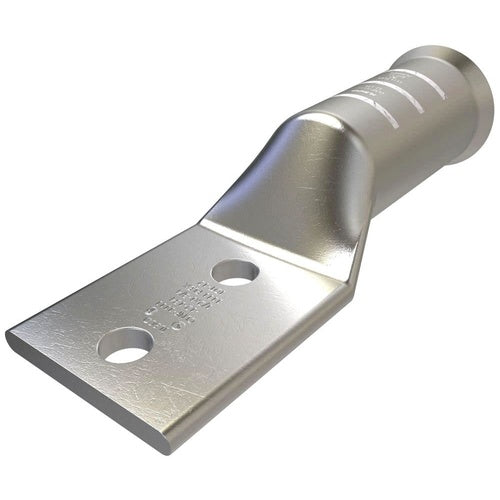

ILSCO CLNF-1000-12-134 Long Barrel Lug

Overview

Ilsco CLNF-1000-12-134 Long Barrel Lug

Product Specifications

• UPC: 78366965148
• Pad Size: 3 INCH L X 2.188 INCH W X 0.328 INCH THK
• Number Of Pad Holes: 2
• Pad Hole Spacing: 1 3/4 INCH
• Stud Size: 1/2 INCH
• Color: WHITE
• Die Index: I-125
• Material: SEAMLESS ELECTRO TIN PLATED COPPER
• Overall Length: 7.438 INCH
• Approval: UL, CSA
• Additional Information: INNER DIAMETER 1.172 INCH; OUTER DIAMETER 1.5 INCH; WITH CHAMFERED TYPE CABLE ENTRY
• Catalog Number: CLNF-1000-12-134
• Brand Name: SureCrimp[R]
• Model: CLNF
• Voltage Rating: 35 KV
• Conductor Material: COPPER
• Conductor Size: 1000 KCMIL
• Barrel Type: LONG, BELLED
• Barrel Length: 3.563 INCH
• Catalog Description: SURECRIMP COPPER COMPRESSION LUG, CONDUCTOR SIZE 1000, 2 HOLES, 1/2IN BOLT SIZE, 1-3/4IN HOLE SPACING, LONG BARREL, NO SIGHT WINDOW, FLARED END, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Electro Tin Plated Copper Material; White Color; 7.438 Inch Overall Length; 3.563 Inch Barrel Length; Copper Conductor Material; UL, CSA Approval; 35 kV Voltage Rating; 1000 kcmil Conductor Size; 1/2 Inch Stud Size; I-125 Die Index; 3 Inch L X 2.188 Inch W X 0.328 Inch Thk Pad Size; 2 Pad Hole(S); 1 3/4 Inch Pad Hole Spacing; Long, Belled Barrel Type; SURECRIMP[R] Brand; Inner Diameter 1.172 Inch; Outer Diameter 1.5 Inch; With Chamfered Type Cable Entry; CLNF Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669651485
• SKU Name: ilsco clnf100012134
