ILSCO CLWS-2-14 1-Hole Lug

Overview

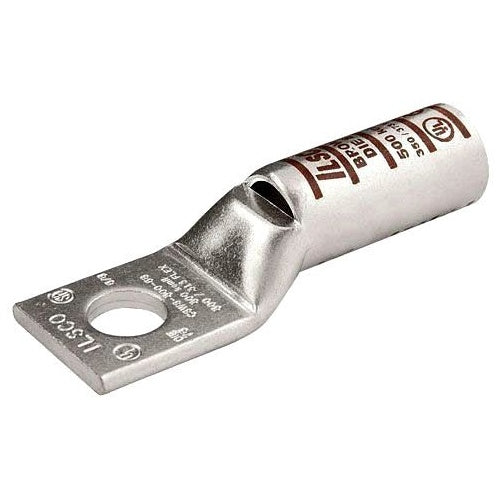

Ilsco CLWS-2-14 1-Hole Lug

Product Specifications

• UPC: 78366963299
• Pad Size: 0.68 Inch L x 0.599 Inch W x 0.109 Inch Thk
• Number Of Pad Holes: 1
• Stud Size: 1/4 Inch
• Color: Brown
• Die Index: I-33
• Material: Seamless Electro-Tin Plated Copper
• Overall Length: 2.091 Inch
• Approval: UL 453G, UL 467, UL 486A/B, CSA
• Additional Information: ROHS Compatible; Size 0.312 Inch ID x 0.421 Inch OD; Barrel Type Chamfered Entry; Temperature Rating 90 Deg C
• Catalog Number: CLWS-2-14
• Brand Name: SureCrimp[R]
• Model: CLWS
• Voltage Rating: 35 KV
• Conductor Material: Copper
• Conductor Size: 2 AWG
• Barrel Type: Long
• Barrel Length: 1.125 Inch
• Catalog Description: SURECRIMP COPPER COMPRESSION LUG, CONDUCTOR SIZE 2, 1 HOLE, 1/4IN BOLT SIZE, LONG BARREL, SIGHT WINDOW, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: Seamless Electro-Tin Plated Copper Material; Brown Color; 2.091 Inch Overall Length; 1.125 Inch Barrel Length; Copper Conductor Material; UL 453G, UL 467, UL 486A/B, CSA Approval; 35 kV Voltage Rating; 2 AWG Conductor Size; 1/4 Inch Stud Size; I-33 Die Index; 0.68 Inch L X 0.599 Inch W X 0.109 Inch Thk Pad Size; 1 Pad Hole(S); Long Barrel Type; Surecrimp [R] Brand; RoHS Compatible; Size 0.312 Inch ID X 0.421 Inch OD; Barrel Type Chamfered Entry; Temperature Rating 90 Deg C; CLWS Model
• Made In Usa: Yes
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Compression Cable Lug
• Unspsc: 39121448
• UPC 12 Digit: 783669632996
• SKU Name: ilsco clws214
