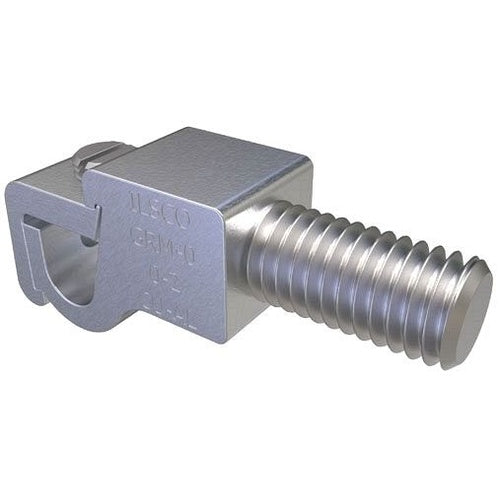

ILSCO GRM-0 1/0Awg Aluminum/Copper Grounding Connector

Overview

Ilsco GRM-0 1/0Awg Aluminum/Copper Grounding Connector

Product Specifications

• UPC: 78366930900
• Additional Information: ROHS Compliant; Screw Type Slot; Stud Size 1/2 Inch-13 TPI; Includes Elongated Steel Stud
• Catalog Number: GRM-0
• Model: GRM
• Length: 1-9/16 Inch
• Material: High Strength 6061-T6 Aluminum Alloy
• Finish: Electro-Tin Plated
• Conductor Size: 2 to 1/0 AWG Stranded
• Conductor Material: Aluminum/Copper
• Application: Grounding Single Conductor to Steel Structure/To Tap Single Conductor from Bus Bar
• Catalog Description: PERMAGROUND ALUMINUM GROUNDING CONNECTOR, DUAL RATED, CONDUCTOR RANGE 1/0-2, MALE, 1/2IN BOLT SIZE, TIN PLATED
• Category: Ground Rods & Grounding Systems
• Full Technical Description: High Strength 6061-T6 Aluminum Alloy Material; Electro-Tin Plated Finish; 1-9/16 Inch; Aluminum/Copper Conductor Material; Grounding Single Conductor to Steel Structure/To Tap Single Conductor From Bus Bar Application; 2 to 1/0 AWG Stranded Conductor Size; RoHS Compliant; Screw Type Slot; Stud Size 1/2 Inch-13 TPI; Includes Elongated Steel Stud; GRM Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Grounding Connector
• Unspsc: 39121408
• UPC 12 Digit: 783669309003
• SKU Name: ilsco grm0

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
