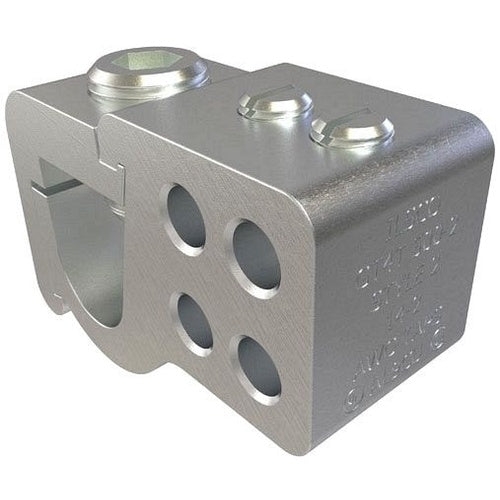

ILSCO GT4T-500-2-2 T-Tap Connector

Overview

Ilsco GT4T-500-2-2 T-Tap Connector

Product Specifications

• UPC: 78366941239
• Maximum Conductor Size: 500 KCMIL (MAIN), 2 AWG (ALUMINUM/COPPER, TAP)
• Body Material: ELECTRO TIN PLATED HIGH STRENGTH 6061-T6 ALUMINUM ALLOY
• Approval: UL 453-G, UL 486A, UL 486B, CSA
• Additional Information: SIZE 2 31/32 INCH L X 1 1/4 INCH W X 1 11/16 INCH H; SCREW TYPE SLOTTED; TEMPERATURE RATING 90 DEG C; PACKAGING QUANTITY 3; FEATURES COMPACT DESIGN, REUSABLE
• Catalog Number: GT4T-500-2-2
• Brand Name: ILSCO[R]
• Model: GT4T
• Voltage Rating: 600 V
• Number Of Ports: 4
• Cable Entry: LAY IN
• Conductor Material: ALUMINUM/COPPER
• Minimum Conductor Size: 350 KCMIL (MAIN), 14 AWG (COPPER, TAP), 12 AWG (ALUMINUM, TAP)
• Catalog Description: ALUMINUM MULTIPLE TAP CONNECTOR, DUAL RATED, MAIN CONDUCTOR RANGE 500-350, TAP RANGE 2-12 AL, 2-14 CU, 4 PARALLEL TAPS, TIN PLATED, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: 350 kcmil (Main), 14 AWG (Copper, Tap), 12 AWG (Aluminum, Tap) min. Conductor Size; 500 kcmil (Main), 2 AWG (Aluminum/Copper, Tap) Max. Conductor Size; Aluminum/Copper Conductor Material; UL 453-G, UL 486A, UL 486B, CSA Approval; 600 V Voltage Rating; Electro Tin Plated High Strength 6061-T6 Aluminum Alloy Body Material; 4 Port(S); Lay in Cable Entry; ILSCO[R] Brand; Size 2 31/32 Inch L X 1 1/4 Inch W X 1 11/16 Inch H; Screw Type Slotted; Temperature Rating 90 Deg C; Packaging Quantity 3; Features Compact Design, Reusable; GT4T Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669412390
• SKU Name: ilsco gt4t50022
