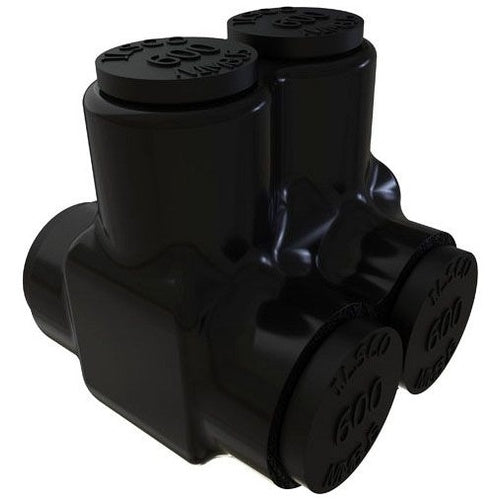

ILSCO PBTD-2-500 2-Port Insulated Tap Connector

Overview

Ilsco PBTD-2-500 2-Port Insulated Tap Connector

Product Specifications

• UPC: 78366907840
• Maximum Conductor Size: 600 KCMIL
• Body Material: High Dielectric Strength Plastisol Insulated
• Approval: UL 486A/B, UL 453G, CSA
• Additional Information: RoHS Compliant; Constructional Feature Chemical Resistant; Overall Dimension 2.97 Inch Length x 2.63 Inch Width x 3.04 Inch Height; Hex Size 3/8 Inch; Color Black; Temperature Rating 90 Deg C, -45 Deg C (Cold)
• Catalog Number: PBTD-2-500
• Brand Name: NIMBUS[R]
• Model: PBTD
• Voltage Rating: 600 Volt
• Number Of Ports: 2
• Cable Entry: 2-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 4 AWG
• Catalog Description: NIMBUS INSULATED ALUMINUM MULTI-TAP CONNECTOR, CONDUCTOR RANGE 600-4, 2 PORTS, DUAL SIDED ENTRY, TIN PLATED, UL, CSA
• Category: Splicing & Terminating Kits
• Full Technical Description: 4 AWG min. Conductor Size; 600 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486A/B, UL 453G, CSA Approval; 600 Volt Voltage Rating; High Dielectric Strength Plastisol Insulated Body Material; 2 Port(S); 2-Side Entry Cable Entry; Nimbus [R] Brand; RoHS Compliant; Constructional Feature Chemical Resistant; Overall Dimension 2.97 Inch Length X 2.63 Inch Width X 3.04 Inch Height; Hex Size 3/8 Inch; Color Black; Temperature Rating 90 Deg C, -45 Deg C (Cold); PBTD Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669078404
• SKU Name: ilsco pbtd2500
