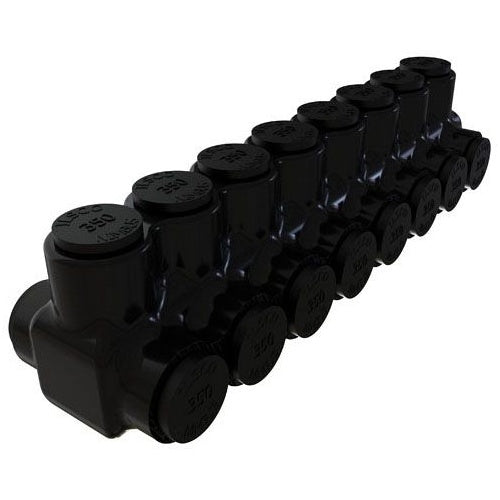

ILSCO PBTD-8-350 8-Port Insulated Tap Connector

Overview

Ilsco PBTD-8-350 8-Port Insulated Tap Connector

Product Specifications

• UPC: 78366907826
• Maximum Conductor Size: 350 KCMIL
• Body Material: High Dielectric Strength Plastisol Insulated
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: RoHS Compliant; Overall Dimension 9.404 Inch Length x 2.578 Inch Width x 2.396 Inch Height; Screw Size 5/16 Inch Hex; Current Rating 350 Amp; Type Insulated; Temperature Rating 90 Deg C, -45 Deg C (Cold)
• Catalog Number: PBTD-8-350
• Brand Name: NIMBUS[R]
• Model: PBTD
• Voltage Rating: 600 Volt
• Number Of Ports: 8
• Cable Entry: 2-Side
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 6 AWG
• Catalog Description: NIMBUS INSULATED ALUMINUM MULTI-TAP CONNECTOR, CONDUCTOR RANGE 350-6, 8 PORTS, DUAL SIDED ENTRY, TIN PLATED, UL, CSA
• Category: Splicing & Terminating Kits
• Full Technical Description: 6 AWG min. Conductor Size; 350 kcmil Max. Conductor Size; Copper/Aluminum Conductor Material; UL 453G, UL 486A/B, CSA Approval; 600 Volt Voltage Rating; High Dielectric Strength Plastisol Insulated Body Material; 8 Port(S); 2-Side Cable Entry; Nimbus [R] Brand; RoHS Compliant; Overall Dimension 9.404 Inch Length X 2.578 Inch Width X 2.396 Inch Height; Screw Size 5/16 Inch Hex; Current Rating 350 Amp; Type Insulated; Temperature Rating 90 Deg C, -45 Deg C (Cold); PBTD Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669078268
• SKU Name: ilsco pbtd8350

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
