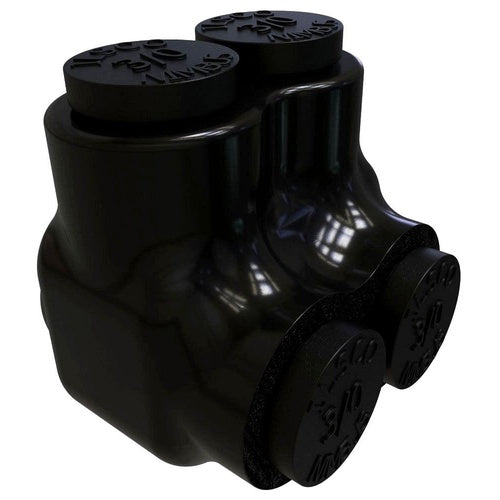

ILSCO PBTS-2-3/0 2-Port Insulated Tap Connector

Overview

Ilsco PBTS-2-3/0 2-Port Insulated Tap Connector

Product Specifications

• UPC: 78366907950
• Maximum Conductor Size: 3/0 AWG
• Body Material: High Dielectric Strength Plastisol Insulated
• Approval: UL 486A/B, UL 453G, CSA
• Additional Information: RoHS Compliant; Constructional Feature Chemical Resistant; Current Rating 225 Amp; Overall Dimension 1.89 Inch Length x 1.58 Inch Width x 1.86 Inch Height; Hex Size 1/4 Inch; Color Black; Temperature Rating 90 Deg C, -45 Deg C (Cold)
• Catalog Number: PBTS-2-3/0
• Brand Name: NIMBUS[R]
• Model: PBTS
• Voltage Rating: 600 Volt
• Number Of Ports: 2
• Cable Entry: 1-Side Entry
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 6 AWG
• Catalog Description: NIMBUS INSULATED ALUMINUM MULTI-TAP CONNECTOR, CONDUCTOR RANGE 3/0-6, 2 PORTS, SINGLE SIDED ENTRY, TIN PLATED, UL, CSA
• Category: Splicing & Terminating Kits
• Full Technical Description: 6 AWG min. Conductor Size; 3/0 AWG Max. Conductor Size; Copper/Aluminum Conductor Material; UL 486A/B, UL 453G, CSA Approval; 600 Volt Voltage Rating; High Dielectric Strength Plastisol Insulated Body Material; 2 Port(S); 1-Side Entry Cable Entry; Nimbus [R] Brand; RoHS Compliant; Constructional Feature Chemical Resistant; Current Rating 225 Amp; Overall Dimension 1.89 Inch Length X 1.58 Inch Width X 1.86 Inch Height; Hex Size 1/4 Inch; Color Black; Temperature Rating 90 Deg C, -45 Deg C (Cold); PBTS Model
• Made In Usa: Yes
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669079500
• SKU Name: ilsco pbts23/0

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
