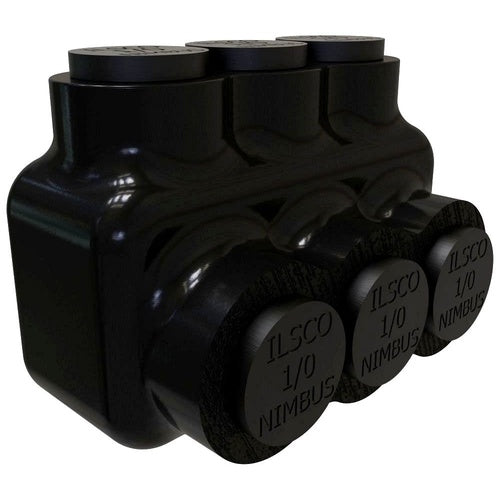

ILSCO PBTS-3-1/0 3-Port Insulated Tap Connector

Overview

Ilsco PBTS-3-1/0 3-Port Insulated Tap Connector

Product Specifications

• UPC: 78366907926
• Maximum Conductor Size: 1/0 AWG
• Body Material: High Dielectric Strength Plastisol Insulated
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: RoHS Compliant; Overall Dimension 2.29 Inch Length x 1.53 Inch Width x 1.63 Inch Height; Screw Size 3/16 Inch Hex; Type Insulated; Temperature Rating 90 Deg C; Constructional Feature Chemical Resistant; Includes Black Cover, Removable Plug
• Catalog Number: PBTS-3-1/0
• Brand Name: NIMBUS[R]
• Model: PBTS
• Voltage Rating: 600 Volt
• Number Of Ports: 3
• Cable Entry: 1-Side
• Conductor Material: Copper/Aluminum
• Minimum Conductor Size: 14 AWG
• Catalog Description: NIMBUS INSULATED ALUMINUM MULTI-TAP CONNECTOR, CONDUCTOR RANGE 1/0-14, 3 PORTS, SINGLE SIDED ENTRY, TIN PLATED, UL, CSA
• Category: Splicing & Terminating Kits
• Full Technical Description: 14 AWG min. Conductor Size; 1/0 AWG Max. Conductor Size; Copper/Aluminum Conductor Material; UL 453G, UL 486A/B, CSA Approval; 600 Volt Voltage Rating; High Dielectric Strength Plastisol Insulated Body Material; 3 Port(S); 1-Side Cable Entry; Nimbus [R] Brand; RoHS Compliant; Overall Dimension 2.29 Inch Length X 1.53 Inch Width X 1.63 Inch Height; Screw Size 3/16 Inch Hex; Type Insulated; Temperature Rating 90 Deg C; Constructional Feature Chemical Resistant; Includes Black Cover, Removable Plug; PBTS Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
• Sub Category: Mechanical Multiple Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783669079265
• SKU Name: ilsco pbts31/0
