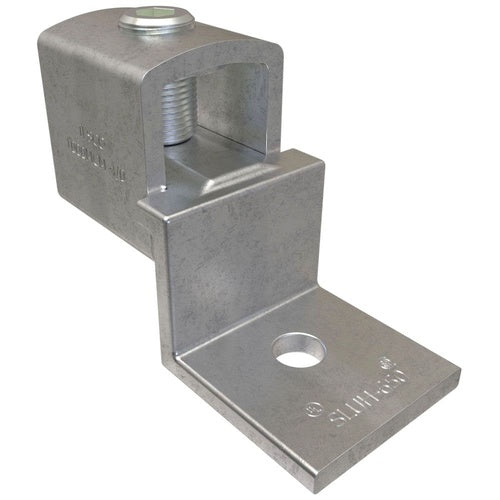

ILSCO SLUH-650 1000mcm Copper Terminal Lug

Overview

Ilsco SLUH-650 1000mcm Copper Terminal Lug

Product Specifications

• UPC: 78366984589
• Screw Type: 3/8 Inch Hex
• Material: Electro-Tin Plated Electrolytic Copper
• Number Of Pad Holes: 1
• Pad Size: 1-7/8 Inch L x 2 Inch W
• Stud Size: 1/2 Inch
• Overall Length: 4-5/16 Inch
• Approval: UL 453G, UL 486A/B, CSA
• Additional Information: Size 3-3/32 Inch H; Voltage Rating 2000 V; Temperature Rating 90 Deg C; Packaging Quantity 1
• Catalog Number: SLUH-650
• Model: SLUH
• Type: V Bottom Collar
• Number Of Conductors: 1
• Minimum Conductor Size: 4/0 AWG
• Maximum Conductor Size: 1000 KCMIL
• Conductor Material: Copper
• Pad Type: Offset
• Catalog Description: COPPER MECHANICAL HEAVY DUTY LUG OFFSET, CONDUCTOR RANGE 1000-4/0, 1 PORT, 1 HOLE, 1/2IN BOLT SIZE, UL, CSA
• Category: Large Terminals & Connectors
• Full Technical Description: V Bottom Collar Type; Electro-Tin Plated Electrolytic Copper Material; 4-5/16 Inch Overall Length; 4/0 AWG min. Conductor Size; 1000 kcmil Max. Conductor Size; Copper Conductor Material; UL 453G, UL 486A/B, CSA Approval; 1 Conductor(S); 1/2 Inch Stud Size; 1-7/8 Inch L X 2 Inch W Pad Size; 1 Pad Hole(S); Offset Pad Type; 3/8 Inch Hex Screw Type; Size 3-3/32 Inch H; Voltage Rating 2000 V; Temperature Rating 90 Deg C; Packaging Quantity 1; SLUH Model
• Manufacturer: ILSCO CORP
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Lug
• Unspsc: 39121408
• UPC 12 Digit: 783669845891
• SKU Name: ilsco sluh650
