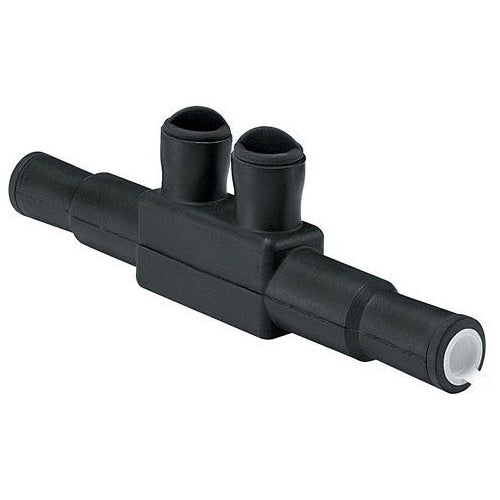

ILSCO USPA-350SS-DB Inline Splice

Overview

Ilsco USPA-350SS-DB Inline Splice

Product Specifications

• UPC: 78366994110
• Hex Size: 5/16 Inch
• Size: 8-5/8 Inch L
• Body Material: High Strength 6061-T6 Aluminum Alloy
• Insulation Type: EPDM Rubber
• Approval: UL 486D, CSA, RUS
• Additional Information: Temperature Rating 90 Deg C; Torque 350 Lb-Inch
• Catalog Number: USPA-350SS-DB
• Model: Type USPA-SS
• Type: In-Line Watertight
• Voltage Rating: 600 V
• Minimum Conductor Size: 10 AWG Stranded
• Maximum Conductor Size: 350 KCMIL
• Conductor Material: Aluminum/Copper
• Number Of Screws: 2
• Catalog Description: WATERTIGHT UNDERGROUND IN-LINE SPLICE, DUAL RATED, DIRECT BURY, CONDUCTOR RANGE 350-10, UL, CSA
• Category: Splicing & Terminating Kits
• Full Technical Description: In-Line Watertight Type; 8-5/8 Inch L Size; 10 AWG Stranded min. Conductor Size; 350 kcmil Max. Conductor Size; Aluminum/Copper Conductor Material; UL 486D, CSA, RUS Approval; 600 V Voltage Rating; High Strength 6061-T6 Aluminum Alloy Body Material; EPDM Rubber Insulation Type; 2 Screw(S); 5/16 Inch Hex Size; Safetysub [R] Brand; Temperature Rating 90 Deg C; Torque 350 lb-Inch; TYPE USPA-SS Model
• Manufacturer: ILSCO Corp.
• Manufacturer Brand: ILSCO Corp.
• Proposition 65 Warning (Ca): This product is in compliance with Prop65; it is not known to contain any chemicals associated with this regulation
• Sub Category: Mechanical Cable Splice
• Unspsc: 39121408
• UPC 12 Digit: 783669941104
• SKU Name: ilsco uspa350ssdb
