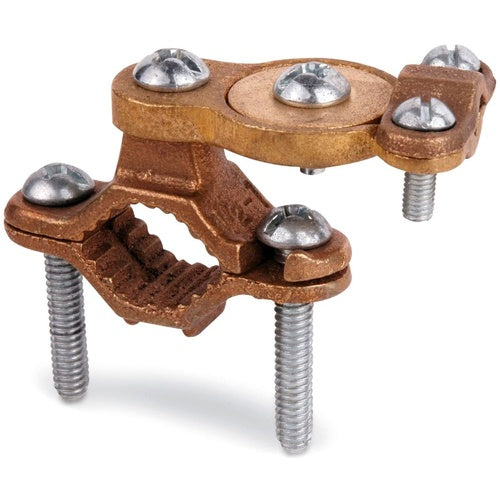

Blackburn JA 1/2 To 1 Bronze Grounding ClAMP

Overview

Blackburn JA 1/2 To 1 Bronze Grounding Clamp

Product Specifications

• UPC: 78378680116
• Additional Information: Includes Zinc Plated Screw
• Catalog Number: JA
• Conductor Size: 10 to 6 AWG Solid
• Ips Size: 1/2 to 1 Inch
• Size: 1-3/8 Inch L x 2-3/4 Inch H
• Installation: (2) Screw Connector to Pipe, (2) Screw Wire Connector
• Material: Cast Bronze
• Approval: UL
• Used On: Armored Cable to Pipe
• Catalog Description: CAST BRONZE GROUND CLAMP FOR WIRE RANGE 10 - 6, WATER PIPE SIZE 1/2 - 1
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Cast Bronze Material; 1-3/8 Inch L X 2-3/4 Inch H Size; Armored Cable to Pipe Used on; (2) Screw Connector to Pipe, (2) Screw Wire Connector Installation; UL Approval; 10 to 6 AWG Solid Conductor Size; 1/2 to 1 Inch IPS Size; EZGROUND[TM] Brand; Includes Zinc Plated Screw
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 783786801169
• SKU Name: ja blackburn

Resources

• Manufacturer Spec Sheet
• Product Spec Sheet
