Blackburn JAB12H 1/2 Grounding Rod ClAMP

Overview

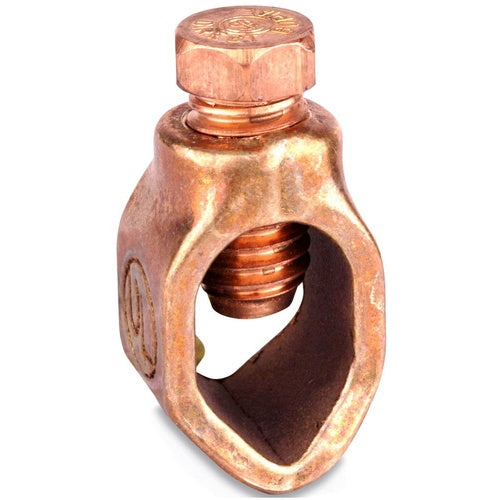

Blackburn JAB12H 1/2 Grounding Rod Clamp

Product Specifications

• UPC: 78378680072
• Used On: Direct Burial
• Additional Information: Screw Thread Size 7/16-14 TPI UNC-2A
• Catalog Number: JAB12H
• Model: JAB
• Conductor Size: 10 AWG Solid to 2 AWG Stranded
• Rod Size: 1/2 Inch
• Size: 7/8 Inch L x 27/32 Inch W x 2-3/32 Inch H
• Installation: (1) Hex Head Bolt
• Material: High-Strength Cast Copper Alloy
• Approval: UL, CSA
• Catalog Description: GROUND ROD CLAMPS TYPE JAB , ROD SIZE 1/2, WIRE RANGE 10 SOL - 2 STR, HEX HEAD BOLT
• Category: Ground Rods & Grounding Systems
• Full Technical Description: High-Strength Cast Copper Alloy Material; 7/8 Inch L X 27/32 Inch W X 2-3/32 Inch H Size; Direct Burial Used on; (1) Hex Head Bolt Installation; UL, CSA Approval; 10 AWG Solid to 2 AWG Stranded Conductor Size; 1/2 Inch Rod Size; EZGROUND[TM] Brand; Screw Thread Size 7/16-14 TPI Unc-2A; JAB Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 783786800728
• SKU Name: jab12h blackburn

Resources

• Manufacturer Spec Sheet
