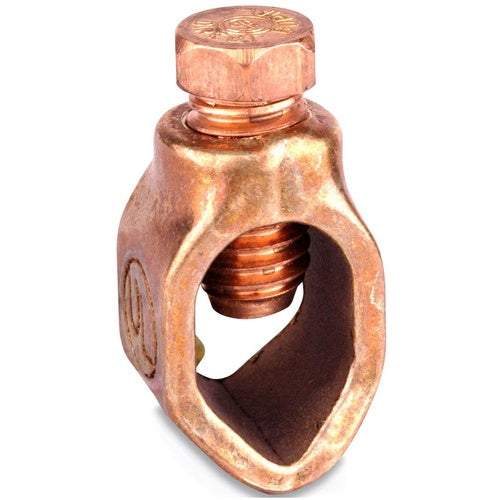

Blackburn JAB58H 5/8 Grounding Rod ClAMP

Overview

Blackburn JAB58H 5/8 Grounding Rod Clamp

Product Specifications

• UPC: 78378680073
• Approval: UL, CSA
• Used On: Direct Burial
• Additional Information: Thread Size 7/16-14 TPI UNC-2A
• Catalog Number: JAB58H
• Brand Name: Blackburn
• Model: JAB
• Conductor Size: 8 AWG Solid to 1/0 AWG Stranded
• Rod Size: 5/8 Inch
• Size: 1 Inch Length x 29/32 Inch Width x 2-13/64 Inch Height
• Installation: (1) Hex Head Bolt
• Material: High Strength Cast Copper Alloy
• Catalog Description: GROUND ROD CLAMPS TYPE JAB , ROD SIZE 5/8, WIRE RANGE 8 SOL - 1/0 STR, HEX HEAD BOLT
• Category: Ground Rods & Grounding Systems
• Full Technical Description: High Strength Cast Copper Alloy Material; 1 Inch Length X 29/32 Inch Width X 2-13/64 Inch Height Size; Direct Burial Used on; (1) Hex Head Bolt Installation; UL, CSA Approval; 8 AWG Solid to 1/0 AWG Stranded Conductor Size; 5/8 Inch Rod Size; EZGROUND[TM] Brand; Thread Size 7/16-14 TPI Unc-2A; JAB Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 783786800735
• SKU Name: jab58h blackburn

Resources

• Manufacturer Spec Sheet
