Blackburn JJR 1/2 To 1 Bronze Grounding ClAMP

Overview

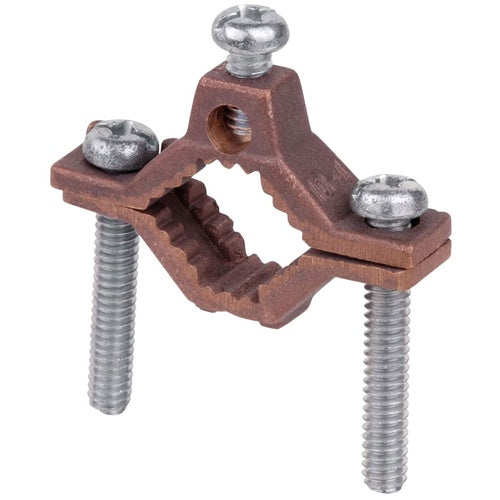

Blackburn JJR 1/2 To 1 Bronze Grounding Clamp

Product Specifications

• UPC: 78378680111
• Catalog Number: JJR
• Conductor Size: 10 AWG Solid to 4 AWG Stranded
• Ips Size: 1/2 to 1 Inch
• Size: 17/32 Inch L x 2-5/32 Inch W x 2-15/32 Inch H
• Installation: (2) Screw Connector to Pipe, (1) Screw Wire Connector
• Material: Cast Bronze
• Used On: Ground Conductor to Pipe
• Catalog Description: CAST BRONZE GROUND CLAMP FOR WIRE RANGE 10 - 4, WATER PIPE SIZE 1/2 - 1
• Category: Ground Rods & Grounding Systems
• Full Technical Description: Cast Bronze Material; 17/32 Inch L X 2-5/32 Inch W X 2-15/32 Inch H Size; Ground Conductor to Pipe Used on; (2) Screw Connector to Pipe, (1) Screw Wire Connector Installation; 10 AWG Solid to 4 AWG Stranded Conductor Size; 1/2 to 1 Inch IPS Size; EZGROUND[TM] Brand
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Conduit To Rod Clamp
• Unspsc: 39121613
• UPC 12 Digit: 783786801114
• SKU Name: jjr blackburn
