Blackburn K1 1/0Awg ClAMP

Overview

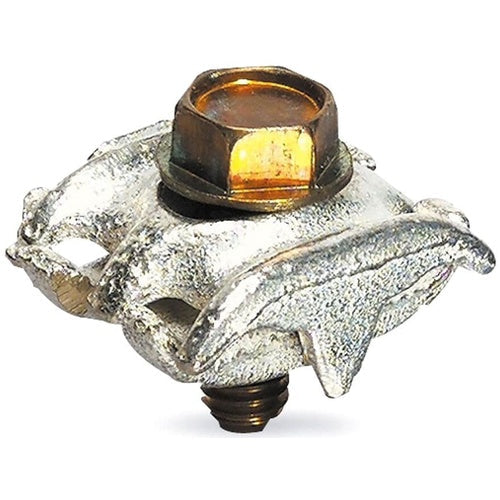

Blackburn K1 1/0Awg Clamp

Product Specifications

• UPC: 78378630034
• Maximum Tap Conductor Size: 2/0 AWG STRANDED (COPPER), 2 A, 7/16 INCH (COPPER WELD)
• Material: HIGH STRENGTH COPPER ALLOY, SILICON BRONZE HEX WASHER HEAD BOLT
• Catalog Number: K1
• Model: K
• Type: JUMPER CLAMP
• Installation: PARALLEL GROOVE, ONE BOLT
• Conductor Material: COPPER/COPPER WELD/ACSR/AMERDUCTOR/IRON/STEEL
• Minimum Run Conductor Size: 6 AWG (ACSR), 12 AWG (AMERDUCTOR), 8 AWG SOLID (IRON)
• Maximum Run Conductor Size: 1/0 AWG (ACSR), 2 AWG (AMERDUCTOR), 16 AWG 7 STRANDED (GALVANIZED STEEL)
• Minimum Tap Conductor Size: 8 AWG SOLID (COPPER), 9 TO 12 D (COPPER WELD)
• Catalog Description: COPPER TYPE K - JUMPER CLAMP FOR WIRE RANGE PLATED GROOVE #6 - 1/0 ACSR, COPPER GROOVE #8 SOLID - 2/0 STRANDED, CLAMP PLATED IN ONE GROOVE.
• Category: Large Terminals & Connectors
• Full Technical Description: Jumper Clamp Type; High Strength Copper Alloy, Silicon Bronze Hex Washer Head Bolt Material; 6 AWG (ACSR), 12 AWG (Amerductor), 8 AWG Solid (Iron) min. Run Conductor Size; 1/0 AWG (ACSR), 2 AWG (Amerductor), 16 AWG 7 Stranded (Galvanized Steel) Max. Run Conductor Size; 8 AWG Solid (Copper), 9 to 12 D (Copper Weld) min. Tap Conductor Size; 2/0 AWG Stranded (Copper), 2 A, 7/16 Inch (Copper Weld) Max. Tap Conductor Size; Parallel Groove, One Bolt Installation; Copper/Copper Weld/Acsr/Amerductor/Iron/Steel Conductor Material; K Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786300341
• SKU Name: k1 blackburn
