Blackburn K2 1/0Awg ClAMP

Overview

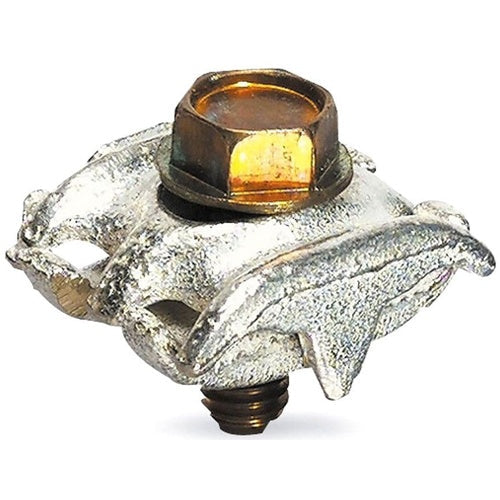

Blackburn K2 1/0Awg Clamp

Product Specifications

• UPC: 78378630035
• Maximum Tap Conductor Size: 1/0 AWG (ACSR), 2 AWG (AMERDUCTOR), 7/16 INCH STRANDED (GALVANIZED STEEL)
• Material: PLATED CAST COPPER ALLOY, SILICON BRONZE HEX WASHER HEAD BOLT
• Catalog Number: K2
• Model: K
• Type: JUMPER CLAMP
• Installation: PARALLEL GROOVE, ONE BOLT
• Conductor Material: COPPER/COPPER WELD/ACSR/AMERDUCTOR/IRON/STEEL
• Minimum Run Conductor Size: 6 AWG (ACSR), 12 AWG (AMERDUCTOR), 8 AWG SOLID (IRON)
• Maximum Run Conductor Size: 1/0 AWG (ACSR), 2 AWG (AMERDUCTOR), 16 AWG 7 STRANDED (GALVANIZED STEEL)
• Minimum Tap Conductor Size: 6 AWG (ACSR), 12 AWG (AMERDUCTOR), 8 AWG SOLID (IRON)
• Catalog Description: COPPER TYPE K - JUMPER CLAMP FOR WIRE RANGE ACSR #6 - 1/0, CLAMP TIN-PLATED
• Category: Large Terminals & Connectors
• Full Technical Description: Jumper Clamp Type; Plated Cast Copper Alloy, Silicon Bronze Hex Washer Head Bolt Material; 6 AWG (ACSR), 12 AWG (Amerductor), 8 AWG Solid (Iron) min. Run Conductor Size; 1/0 AWG (ACSR), 2 AWG (Amerductor), 16 AWG 7 Stranded (Galvanized Steel) Max. Run Conductor Size; 6 AWG (ACSR), 12 AWG (Amerductor), 8 AWG Solid (Iron) min. Tap Conductor Size; 1/0 AWG (ACSR), 2 AWG (Amerductor), 7/16 Inch Stranded (Galvanized Steel) Max. Tap Conductor Size; Parallel Groove, One Bolt Installation; Copper/Copper Weld/Acsr/Amerductor/Iron/Steel Conductor Material; K Model
• Manufacturer: ABB, Inc. - Thomas & Betts
• Manufacturer Brand: T&B Blackburn
• Sub Category: Mechanical Single Cable Tap
• Unspsc: 39121408
• UPC 12 Digit: 783786300358
• SKU Name: k2 blackburn
