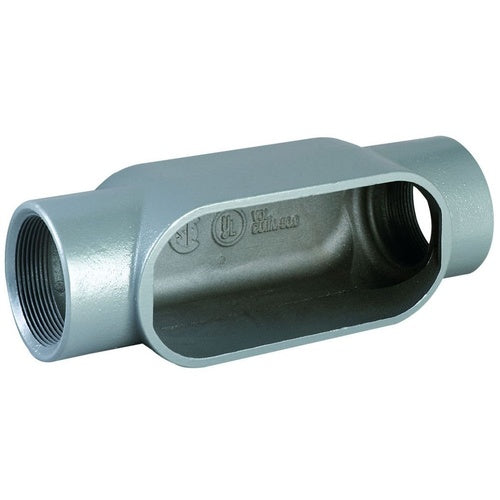

Killark C97SA C-Type Conduit Body,Corrosafe7 Aluminum 3-1/2"

Overview

Killark C97SA C-Type Conduit Body,Corrosafe7 Aluminum 3-1/2"

Product Specifications

• UPC: 78393608048
• Hub Size: 3-1/2 Inch
• Size: 14-7/8 Inch L x 5-3/8 Inch W x 5-3/8 Inch H
• Installation: Threaded (IMC/Rigid)
• Material: Electrostatically Applied Powder Coated Copper Free Aluminum
• Form Type: Form 7
• Approval: UL, CSA
• Used On: Rigid Conduit/IMC
• Additional Information: Applicable Standard Federal Specification W-C-586D/A-A 50563
• Catalog Number: C97SA
• Brand Name: DURALOY[R]
• Model: 7
• Access Opening: Side
• Configuration: C
• Cover Type: Stainless Steel
• Hub Location: Straight
• Number Of Hubs: 2
• Catalog Description: 3-1/2" C HUB, ALUMINUM DURALOY 7 CONDUIT BODY
• Category: Aluminum Conduit Bodies & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Copper Free Aluminum Material; 14-7/8 Inch L X 5-3/8 Inch W X 5-3/8 Inch H Size; Rigid Conduit/Imc Used on; 3-1/2 Inch Hub Size; Threaded (Imc/Rigid) Installation; C Configuration; 2 Hub(S); UL, CSA Approval; Stainless Steel Cover Type; Straight Hub Location; Form 7 Form Type; Side Access Opening; DURALOY[R]7 Brand; Applicable Standard Federal Specification W-C-586D/A-A 50563; 7 Model
• Manufacturer: Killark Electric Manufacturing Co.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Conduit Body
• Unspsc: 39131708
• UPC 12 Digit: 783936080482
• SKU Name: klrk c97sa

Resources

• Manufacturer Spec Sheet
