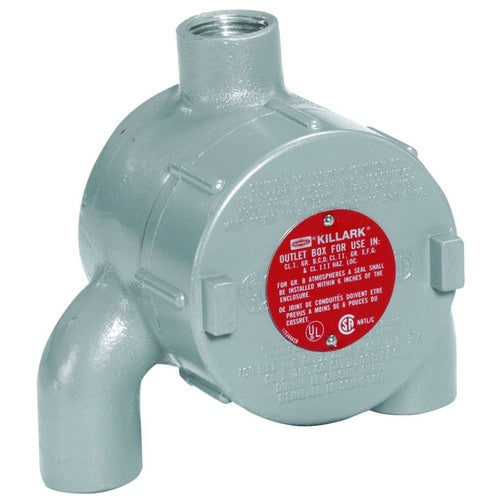

Killark GECUET-2 3/4" Explosion-Proof Conduit Body

Overview

Killark GECUET-2 3/4" Explosion-Proof Conduit Body

Product Specifications

• UPC: 78393621073
• Cover Type: Externally Threaded
• Cover Opening Diameter: 2-11/16 Inch
• Enclosure: Class I Div 1 and 2 Group C D, Class I Zone 1 Group IIA IIB, Class II Div 1 and 2 Group E F G, Class III
• Material: Electrostatically Applied Powder Coated Gray Copper Free Aluminum (Box, Cover)
• Mounting: Flange
• Approval: UL E83969, CSA LR11716
• Additional Information: Overall Dimension 5-13/16 Inch W x 5-7/16 Inch H; Includes Cover
• Catalog Number: GECUET-2
• Style: UET
• Hub Size: 3/4 Inch
• Hub Type: External
• Number Of Hubs: 3
• Hub Location: (1) Top, (2) Side
• Capacity: 19 Cu Inch
• Shape: Round
• Catalog Description: 3/4" GEC OUTLET BODY UET TYPE, ALUMINUM
• Category: Steel Fs & Fd Type Boxes & Covers
• Full Technical Description: Electrostatically Applied Powder Coated Gray Copper Free Aluminum (Box, Cover) Material; Round Shape; 3/4 Inch Hub Size; 3 Hub(S); UL E83969, CSA LR11716 Approval; Flange Mounting; Class I Div 1 and 2 Group C D, Class I Zone 1 Group Iia Iib, Class II Div 1 and 2 Group E F G, Class III Enclosure; Externally Threaded Cover Type; 19 Cu Inch Capacity; Uet Style; (1) Top, (2) Side Hub Location; External Hub Type; 2-11/16 Inch Cover Opening Diameter; Overall Dimension 5-13/16 Inch W X 5-7/16 Inch H; Includes Cover
• Made In Usa: Yes
• Manufacturer: KILLARK ELECTRIC MANUFACTURING CO.
• Manufacturer Brand: Killark Electric Manufacturing Co.
• Sub Category: Explosionproof Conduit Outlet Box
• Unspsc: 39121314
• UPC 12 Digit: 783936210735
• SKU Name: klrk gecuet2
