Korns knub1

Overview

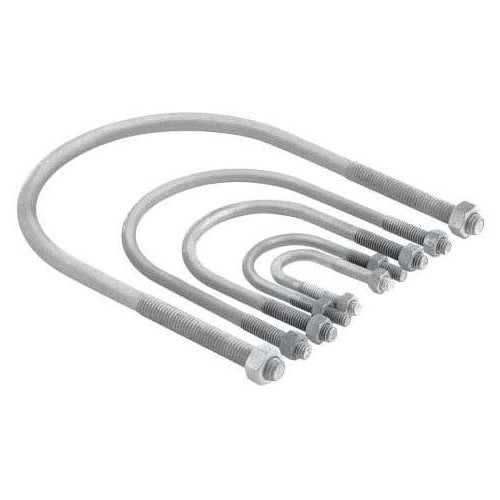

KNUB1 - 1" U-Bolt

Product Specifications

• Catalog Number: KNUB1
• UPC / GTIN: 784011156078
• Manufacturer: Ecn/Korns
• UNSPSC: 31161616 - U bolts
• Full Technical Description: U-BOLT, ROUND BEND TYPE; 1.41 INCH INSIDE WIDTH; 1.5 INCH THREAD LENGTH; 5/16 INCH NOMINAL DIAMETER; 18 TPI; 5/16 NOMINAL DIAMETER - FRACTIONAL; .3125 NOMINAL DIAMETER - DECIMAL; 1.72 INCH CENTER DISTANCE; ROBROY. BRAND; WITH ONE NUT EACH LEG
• Additional Information: WITH ONE NUT EACH LEG ; WEIGHT 15 LB PER PACK; STANDARD PACKAGE 100 PER CARTON
• Description: 1" U-BOLT
• Extra Long Description: STEEL MATERIAL; HOT DIP GALVANIZED FINISH; 100 PER CARTON STANDARD PACKAGE; 1 INCH TRADE SIZE; SIZE 0.312 INCH DIAMETER X 2.75 INCH LENGTH; INTERIOR WIDTH 1.187 INCH; THREAD LENGTH 1.5 INCH; INCLUDES (1) NUT EACH LEG; APPLICABLE STANDARD ISO 9001
• Long Description: U-BOLT, ROUND BEND TYPE; 1.41 INCH INSIDE WIDTH; 1.5 INCH THREAD LENGTH; 5/16 INCH NOMINAL DIAMETER; 18 TPI; 5/16 NOMINAL DIAMETER - FRACTIONAL; .3125 NOMINAL DIAMETER - DECIMAL; 1.72 INCH CENTER DISTANCE; ROBROY. BRAND; WITH ONE NUT EACH LEG
• Product Type: U-Bolt
• Center Distance: 1.72 INCH
• Finish/Coating: HOT DIP GALVANIZED
• Inside Width: 1.41 INCH
• Nominal Diameter: 5/16 INCH
• Nominal Diameter - Decimal: .3125
• Thread Length: 1.5 INCH
• TPI: 18
• Manufacturers Part Number: KNUB-1
• GTIN: 00784011156078
• UPC: 784011156078
• Type: ROUND BEND
• Weight per each: 0.15
• Carton: 1
• Package: 100
